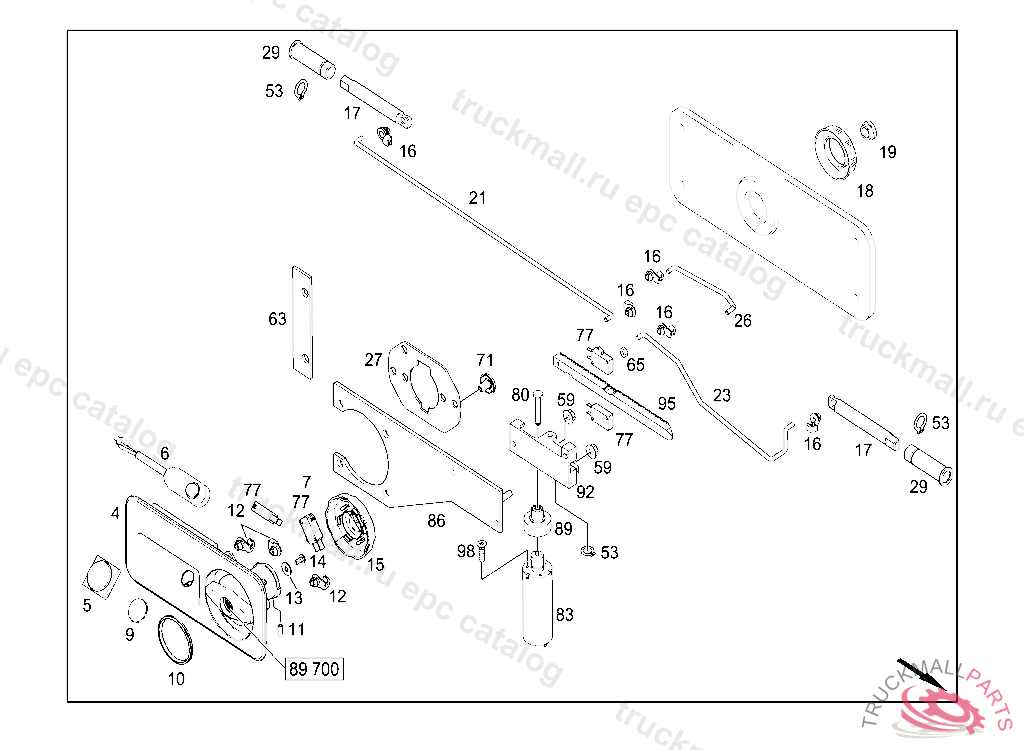

Поз.
Артикул
Описание
4
HANDLE
4
LOCK , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.01.2012
5
ORNAMENTAL COVER MICRO-SWITCH
6
MICRO-SWITCHTYP83123
7
MICRO-SWITCH
9
DOOR HANDLE4X8, TO 632 720 01 66
10
SEAL SUCTION LINE TO OIL TANK
11
SAFETY BOLTTO 632 720 01 66
12
RETAINING CLIP
13
WASHER4MM
14
SCREWTO 000 820 07 51
15
ACTUATIONTO 632 720 01 66
16
RETAINING CLIP
17
LOCK STRIKER
18
HANDLE
19
COVERING PLUG
21
PULL ROD RIGHT 378MM
23
PULL ROD LEFT 208.2MM, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.05.2008
23
OPERATING ROD LEFT 225.1MM: TO A 632 720 01 66
26
PULL ROD TOP
27
PLATE
29
LATCH GUIDE
53
RETAINING RING. LOCK RING BRACKET TO BRACKET
53
LOCK RING
59
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
59
NUT
63
PLATE
65
NUT BRACKET MOUNTING
71
RIVET
71
EXPANSION RIVET BRACKET MOUNTING
77
SWITCHTO A 000 760 90 03
80
BALL PIVOT
83
ELECTRIC MOTOR
86
CONSOLE
89
GEAR DOUBLE GEAR
92
CONSOLE
95
LINK
98
SCREW ROLLER BLIND M3X10
