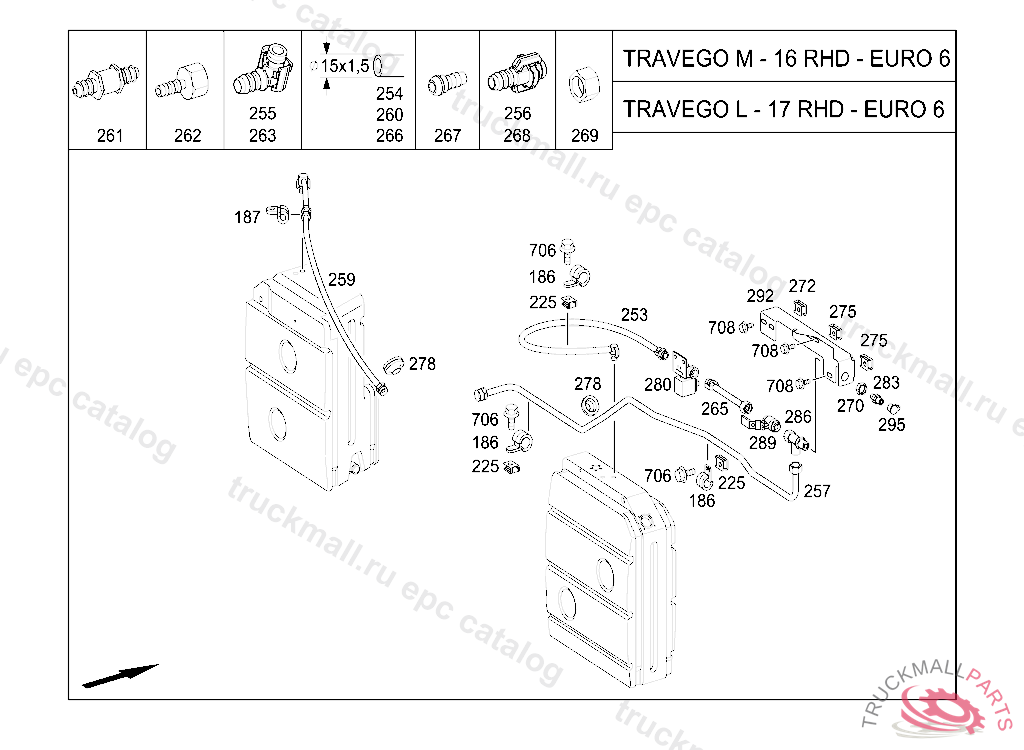

Поз.
Артикул
Описание
186
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
187
MOUNTING CLAMP22/15
225
LOCK NUT. SPRING NUT STEP TO ENTRANCE
253
FUEL LINE
254
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
255
RIGHT-ANGLE PLUG
256
PLUG CONNECTION
257
FUEL LINE
259
FUEL LINE
260
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
261
NON-RETURN VALVE
262
CONNECTOR
263
RIGHT-ANGLE PLUG
265
FUEL LINE
266
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
267
FITTING FUEL LINES
268
PLUG CONNECTION
269
NUT
270
NUT FITTING TO BRACKET,230274
272
SPRING-THREAD NUT PROTECTIVE PLATE
275
NUTM8
278
GROMMET , Replaced By: A3359970081
280
SHUT-OFF VALVE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2012
283
VALVE
286
T-PIECE
289
BALL VALVE
292
BRACKET
295
COVER CAP
706
SCREW BRACKET AND CLAMP M6X20
708
SCREW BRACKET TO CAB REAR PANEL M 8X20
