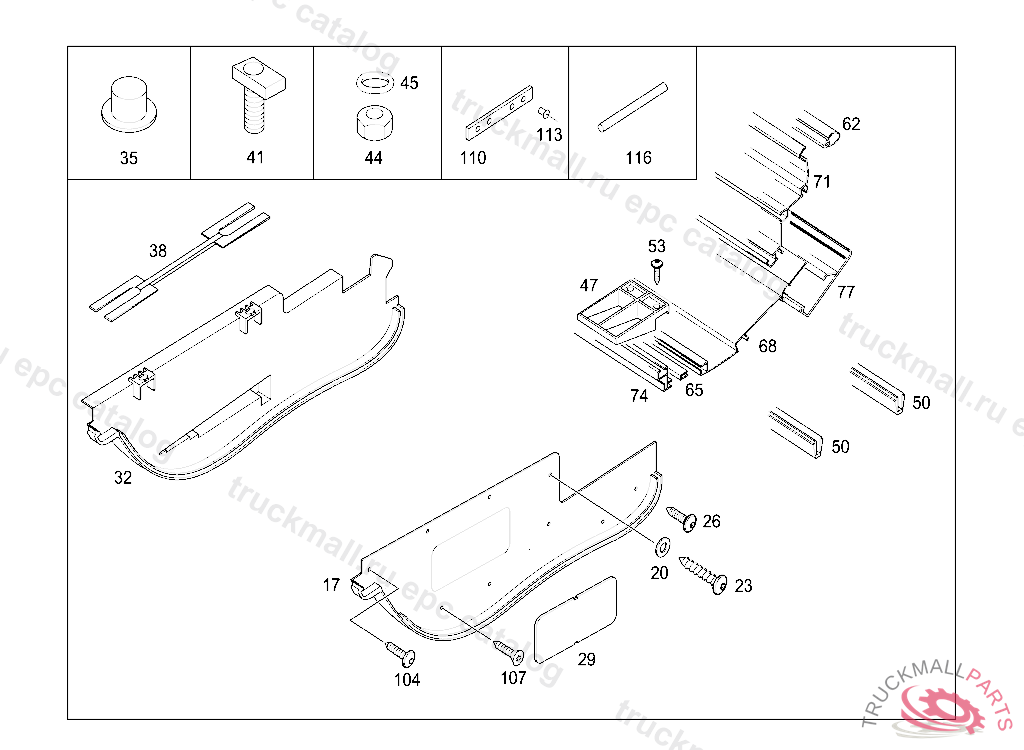

Поз.
Артикул
Описание
17
BRACKET REAR LEFT
17
BRACKET REAR RIGHT
20
WASHER BRACKET TO BATTERY CASE BRACKET
23
HEXALOBULAR BOLT SPLASH GUARD M6X16,V 207570
26
SCREW ASHTRAY MOUNTING
29
COVERING
32
BRACKET FRONT LEFT
32
BRACKET FRONT RIGHT
35
COVERING
38
PAD
41
SCREW F CRANKCASEM8X30
44
NUT HORN TO BRACKET M8
45
REINFORCEMENT WASHER
47
PAD
50
RAIL
53
SCREW
62
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
68
RAIL REAR 5815MM
68
RAIL FRONT LEFT 6055MM
68
RAIL FRONT RIGHT 6055MM
71
RAIL REAR
71
RAIL FRONT LEFT
71
RAIL FRONT RIGHT
74
RAIL FRONT
74
RAIL REAR
77
ROOFLINER FRONT AND REAR, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
77
LEDGE FRONT AND REAR 6055MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6326955027
104
TAPPING SCREW MOUNTING PLATE 3.5X9.5
107
HEXALOBULAR BOLT. SCREW SUPPORT WITH HANDBRAKE VALVE ON SEAT FRAME M 8X16
110
PAD15X70MM
113
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
116
PAD6X70MM
