Mercedes A0006830006 - MONTAGERAHMEN

TRAVEGO L EURO 6 632.450

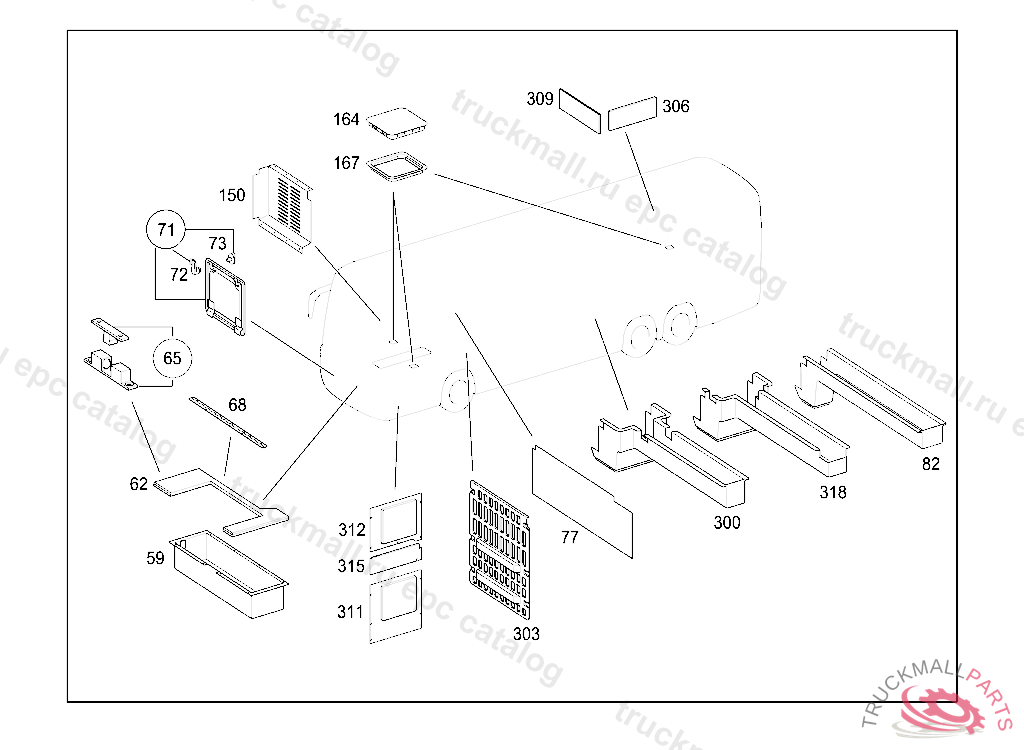

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
59
A6326800058
SHEET-METAL PAN
62
A6326840364
FLOOR FLAP
65
A0009883063
SNAP LOCK
68
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
71
A6296801607
CLOSING COVER
72
A0009980695
ROTARY CATCH
73
A0009980595
ROTARY CATCH
77
A6326870107
COVERING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.05.2009
82
A6296840477
PANELLING WATER PIPE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
150
A6326860307
COVER
164
A0006800323
SERVICING COVER
167
A0006830006
FRAME
303
A6296860407
COVERING CROSS MEMBER 4
303
A6326860607
COVER AT CROSS MEMBER 4
311
A6326803707
COVER
312
A6326820816
COVER ELECTRICAL COMPARTMENT
315
A6326820916
COVER ELECTRICAL COMPARTMENT
