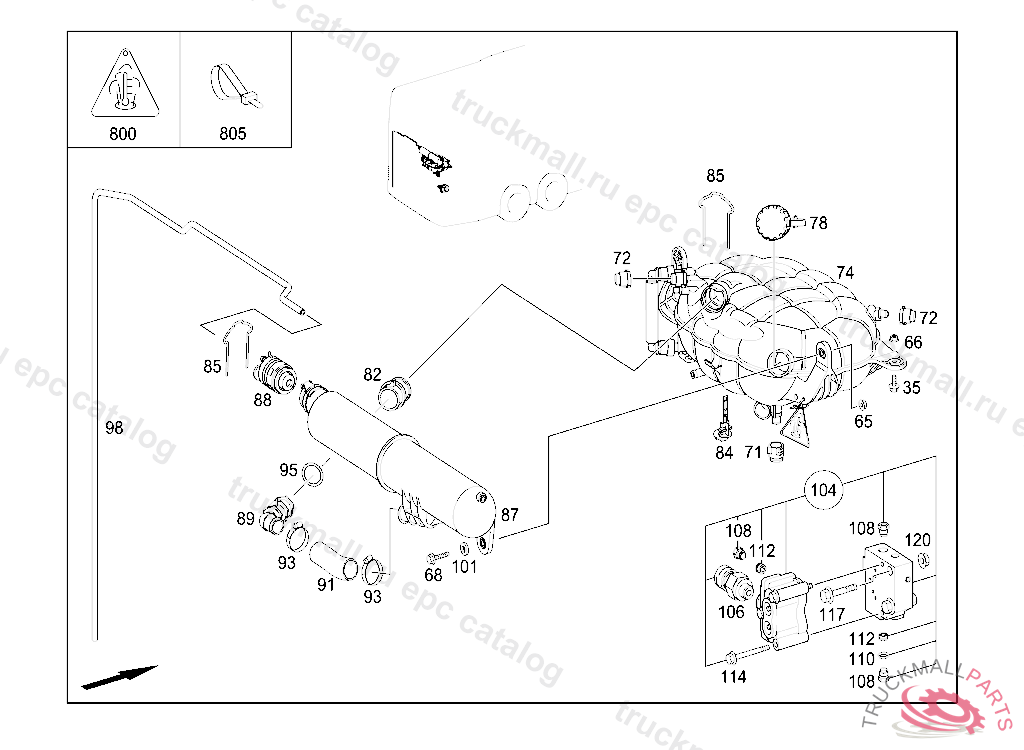

Поз.
Артикул
Описание
35
SCREW , Replaced By: N910143008000
65
NUT HORN TO BRACKET M8
66
HEXAGON NUT W COLLAR
68
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
71
PLUG
72
PLUG CONNECTION
74
EXPANSION TANK FLOOR CONTAINER
78
SCREW CAP
82
RADIATOR CAP
84
FILL-LEVEL SENSOR
85
SPRING HOSE CLAMP
87
EXPANSION TANK ADDITIONAL RESERVOIR
88
PRESSURE RELIEF VALVE ADDITIONAL RESERVOIR 1,4 BAR
89
CONNECTING PIPE
91
MOLDED HOSE
93
CLAMP HOSE TO INTAKE MANIFOLD 25-40X13MM,V 207570
95
O-RING
98
HOSE ASSEMBLY. HOSE8X2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
WASHER BRACKET TO CAB REAR PANEL
104
VALVE BLOCK PRESSURE CONTROL VALVE
106
PRESSURE SENSOR
108
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
110
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, SDF
112
FILTER INSERT PRESSURE CONTROL VALVE
114
HEXAGON HEAD BOLT SHIFTING CYLINDER M5X55
117
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
120
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
800
INFORMATION LABEL TEMPERATURE, RIGID PVC
805
CABLE TIE , Replaced By: A0019978390
