Mercedes N304017008021 - АВТОЗАПЧАСТЬ

TRAVEGO L EURO 6 632.450

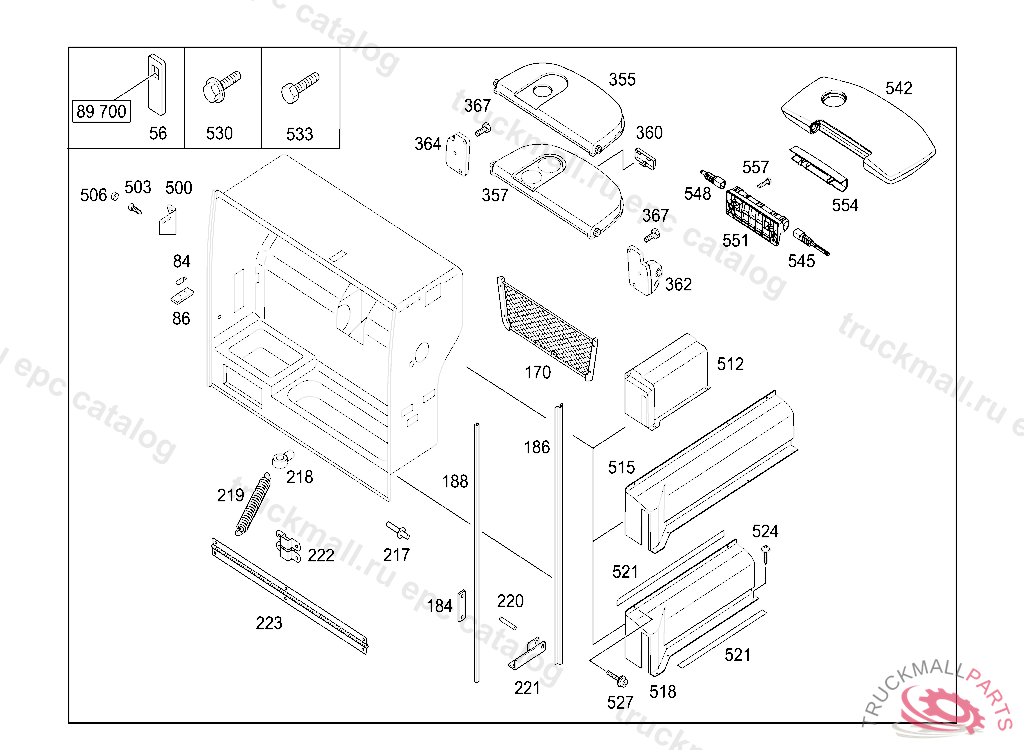

84 TRUNKS AND CASES - 150 KITCHENETTE IL. 2

Поз.
Артикул
Описание
56
A0009881061
STRIKER PLATE
84
A0009820510
LIGHT EMITTING DIODE
86
A0005480382
SOCKET
170
A0008400220
ROOF RACK
184
A0008460676
STOP LEFT
184
A0008460576
STOP RIGHT
186
A0008450140
LEDGE LEFT
186
A0008450040
LEDGE RIGHT
188
A0008490227
RAIL
217
A0008440215
GUIDE
218
A0009905613
EYE BOLT
219
A0009933811
TENSION SPRING
220
A0009917501
PIN
221
A0008450514
BRACKET RIGHT
222
A0009930669
HOOD HINGE
223
A0009930869
HOOD HINGE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 07.2007
500
A6298450014
BRACKET
503
A0009901729
SCREWM8X40
506
A0008310929
CAP SCREW HEAD COVERING
512
A6298450027
COVERING
518
A6298363102
COVERING
521
A0009872266
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
524
N007982004314
SHEET METAL SCREW
527
N000000002436
HEXALOBULAR BOLTM6X16
527
A0039902512
SCREW
530
N910105008014
SCREW CLAMP ON BRACKET
530
N910105008060
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
533
N304017008021
SCREW PIPE CLAMP
542
A6068100065
TABLE TOP CUP HOLDER
545
A6069911301
INDEX BOLT LEFT
548
A6069911401
INDEX BOLT RIGHT
551
A6068160376
HINGE TABLE
554
A6068160208
COVER HINGE
557
A0039907912
SCREW, SPECIAL SHAPE. SCREWM4 X 16
999
A6298404160
KITCHENETTE
999
A0118200110
SWITCH
999
A0038201326
CONTROL UNIT
999
A0035454605
CONTROL UNIT CENTRAL LUBRICATION
999
A0035404605
CABLE HARNESS
999
A0018204701
INTERIOR LAMP
999
A0009970404
THROTTLE
999
A0009918070
CLIP
999
A0008453323
CONTAINER WATER RESERVOIR
999
A0008452223
CONTAINER
999
A0008430714
CUP DISPENSER
999
A0008430614
CUP HOLDER
999
A0008430330
COVERING
999
A0008400055
TAKE-UP DEVICE
999
A0008321259
FITTING ELBOW FITTING
999
A0008231711
PLATE
999
A0008204706
BOILER
999
A0008202606
BOILER
999
A0008200869
CABLE HARNESS
