Главная
›
Mercedes
›
BUS
›
INTEGRO
›
633.001
›
68 PANELLING AND LINING
›

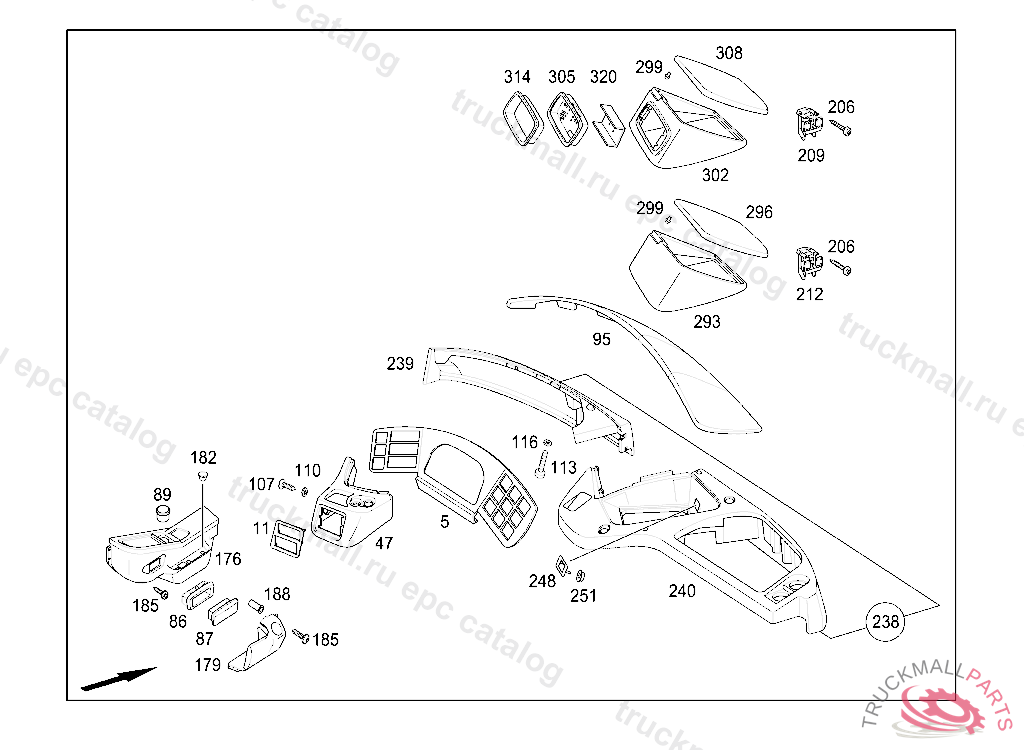

330 INSTRUMENT PANEL IL. 1
Mercedes A6326880206 - Облицовка панели приборов передняя нижняя
INTEGRO 633.001
68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 1
Поз.
Артикул
Описание
5
A6326800155
INSTRUMENT SUPPORT
11
A6326800011
PLATE LEFT
47
A6326800206
PANELLING LEFT
86
A6298130258
HOUSING
87
A6298130158
COVER
89
A6298430014
GLASS BRACKET
95
A6326820116
PANELLING
95
A6326800306
PANELLING
107
N000000000531
TAPPING SCREW TAKE-UP DEVICE M8 X 25
110
N000000003337
WASHER
113
A0009902029
SCREW W SOCKET DRIVEM6X25 T30
116
A3819900740
WASHER BRACKET TO CONSOLE
176
A6326800050
PANELLING UPPER PART, LEFT
176
A6336800081
179
A6326800150
PANELLING
182
A0009879345
LOCKING CAP
185
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
185
N000000000452
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
188
A0009880527
GROMMET
206
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
209
A6296830159
HINGE
212
A6296830259
HINGE WITH SET SCREW
238
A6326800106
PANELLING
239
A6326880206
PANELLING LEFT
240
A6326880306
PANELLING RIGHT
248
A6336803911
FASTENING PLATE
251
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
293
A6296800852
STOWAGE COMPARTMENT
296
A6296800096
COVER
299
A6299980040
STOP BUFFER
302
A6326800652
PIGEONHOLEVDO
302
A6326800552
PIGEONHOLEBLAUPUNKT
305
A6326870080
ORNAMENTAL COVERBLAUPUNKT
308
A6296800096
COVER
314
A6326870180
ORNAMENTAL COVERVDO
320
A6326890014
BRACKET
999
N000000000464
TAPPING SCREW HANDLE TO PANELLING
999
N000000003302
TAPPING SCREW2.9X16
