Mercedes A6297110611 - Platte

INTEGRO 633.001

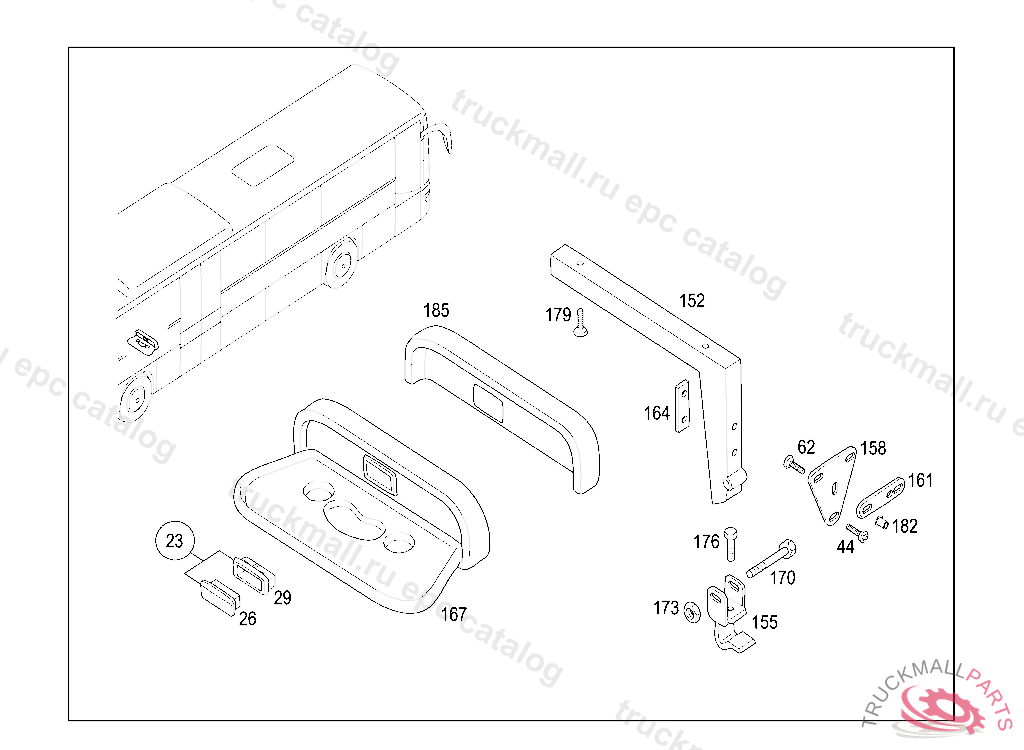

71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS IL. 28

Поз.
Артикул
Описание
23
A6298101130
ASHTRAY TOTAL RANGE OF DELIVERY
26
A6298130158
COVER
29
A6298130258
HOUSING
44
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
44
A0009901129
SCREWM 8X22, T40
62
A0009901729
SCREWM8X40
62
N910105008010
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
152
A6297100013
FRAME
155
A6297100236
BRACKET
158
A6297110511
PLATE
161
A6297110611
PLATE
164
A6297550111
PLATE
167
A6297101801
PARTITION PANEL
170
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
170
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
173
N913023008003
NUT HORN TO BRACKET M8
176
N910105008039
SCREW , Replaced By: N910143008002
176
N304017008010
SCREW
179
A0009901829
SCREWM8X75T40
182
A0009844821
RIVETED NUTM8X16
182
N913024008100
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
185
A6327100201
PARTITION PANEL
999
A3093260353
SPACER TUBE
999
A6298130028
CLIP
