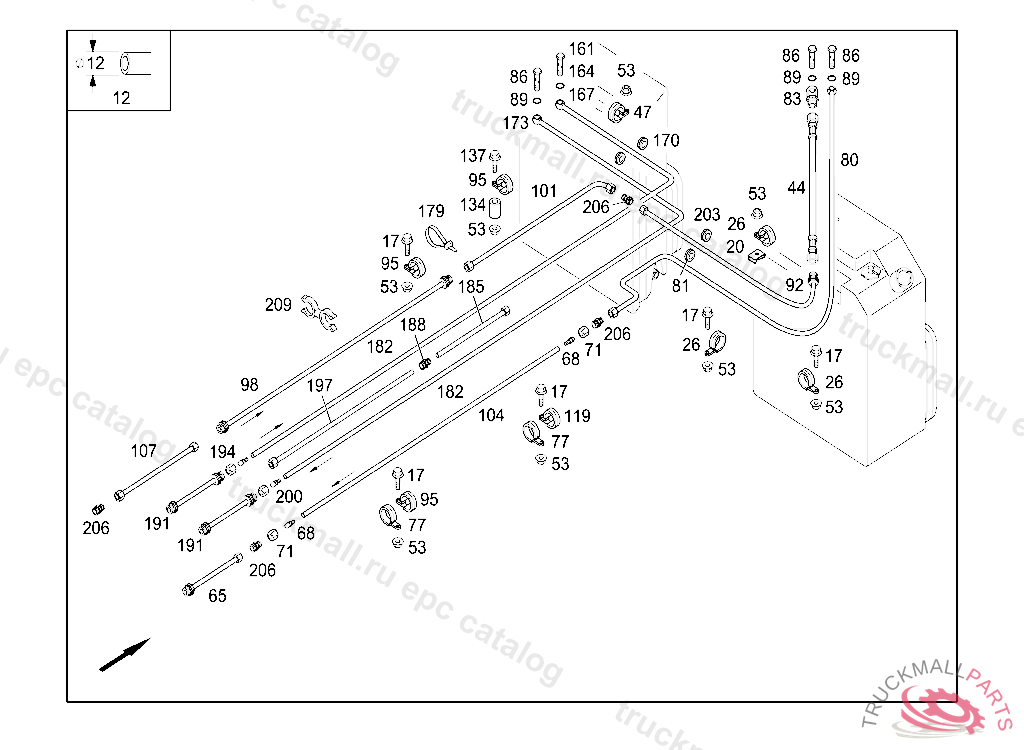

Поз.
Артикул
Описание
12
FUEL PIPE
17
SCREW BRACKET AND CLAMP M6X20
20
LOCK. NUT , Replaced By: A0039941745
26
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
26
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
26
CLAMP
44
FUEL HOSE
47
CLAMP ,K 147121, Replaced By: N000000000319
47
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
53
NUT , Replaced By: N913023006001
65
LINE240MM
68
FITTING FUEL LINES
71
NUT
71
UNION NUT FEED LINE
77
CLAMP LINE MOUNTING
77
CLAMP , Replaced By: A3829950701
80
SUCTION LINE1220MM
81
GROMMET
83
FITTING LINE CONNECTION
83
FITTING
86
BANJO BOLTA8
86
HOLLOW SCREW
89
SEAL RINGTO 000 553 03 05,000 553 18 05,
92
LINE1290X12MM
95
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
95
CLAMP LINE MOUNTING
98
LINE4375X15MM
98
LINE5215X15MM
101
LINE1430X15MM
104
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
104
FUEL LINE. HOSE FUEL TANK TO RING MOUNT 12 X 15 MM, ORDER BY THE METER, Replaced By: A0004763601
107
LINE1870X15MM
119
CLAMP , Replaced By: N916016015202
119
CLAMP16/15, Replaced By: A0019950842
119
MOUNTING CLAMP16/15
134
SPACER SLEEVE
137
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
137
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
161
SCREW
161
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
164
SEAL RING
167
BANJO UNION , Replaced By: N915052006013
170
GROMMET FOR CABLE HARNESS DIA.: 7-10MM
173
BANJO UNION HOSE WIDTH, / I.D., 6/14 MM
173
BANJO UNION
179
CABLE TIE , Replaced By: A0049971890
179
CABLE STRAP
179
CABLE TIE LINE MOUNTING 375X8.4MM
182
FUEL LINE8X1, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
185
LINE12X1900MM
188
CONNECTION FITTING , Replaced By: A0049971772
191
LINE12X115MM
194
NUT. UNION NUT RETURN
194
NUT
197
LINE4170LG.D12
200
FITTING. OUTLETM16X1,5MM
203
GROMMET
206
FITTINGM22/18X1,5MM
209
RANGE SPACER
