INTEGRO M
633.002
83 HEATING AND VENTILATION
440 REFRIGERANT COMPRESSOR IL. 2

Mercedes A0008301324 - LU ZWISCHENFLANSCH

INTEGRO M 633.002

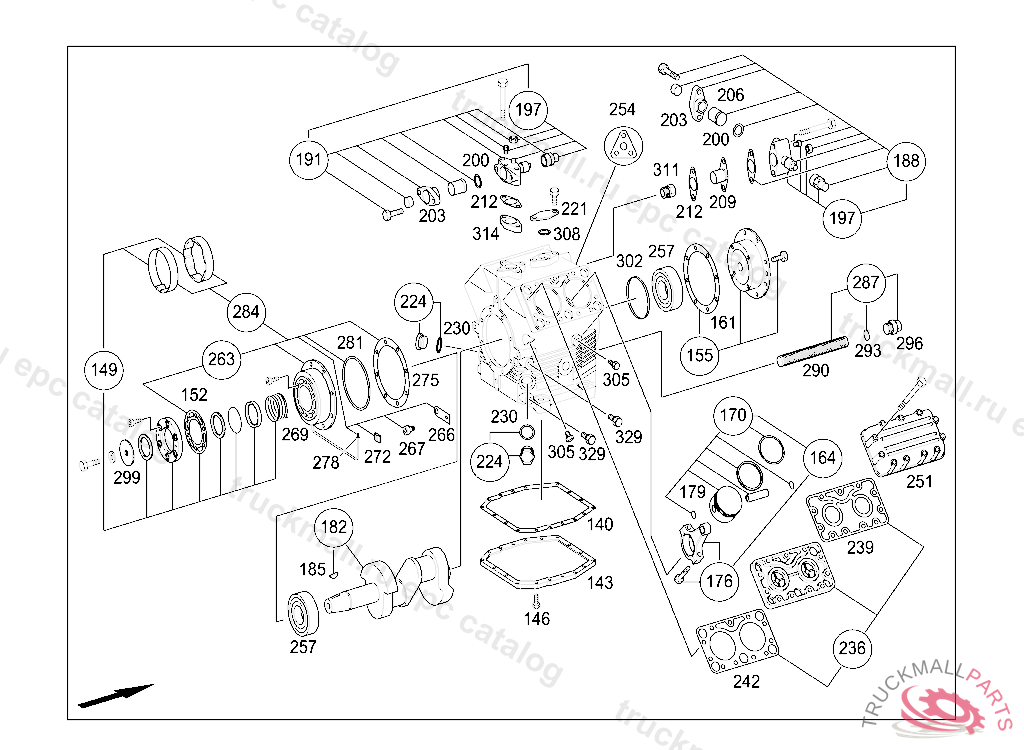

83 HEATING AND VENTILATION - 440 REFRIGERANT COMPRESSOR IL. 2

Поз.
Артикул
Описание
140
A0008351823
WEATHERSTRIP
143
A0008351411
PLATE
146
N000912008215
CAP BOLTM8X30
149
A0001300832
BEARING CAP REPAIR KIT
152
A0011313780
GASKET
155
A0001310465
OIL PUMP (PARTS KIT),OIL PUMP
161
A0011319980
GASKET
164
A0001304917
CONNECTING ROD55MM, TO A 629 830 94 60
170
A0001304417
PISTON ASSEMBLY KIT
176
A0001303316
CONNECTING ROD
179
A0109948641
LOCKFKX 40/655K
182
A0001300714
CRANKSHAFT
185
A0001314108
SPRING
188
A0001307720
VALVE PARTS KIT
191
A0001304220
VALVE PARTS KIT
197
A0038307584
VALVE
200
A0009979149
GASKET34X42 MM
203
A0009970650
FLANGE16MM
206
A0008314725
PIPE SOCKET
209
A0001310834
STRAINER ON SUCTION SIDE
212
A0008312998
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
221
A0009970950
FLANGE9MM, TO A 629 830 94 60
224
A0008351361
SIGHT GLASS22MM, TO A 629 830 94 60
224
A6278350261
SIGHT GLASS
230
A0299973348
SEAL RING
230
A0018357098
SEAL28.3X1.8MM
236
A6278350111
VALVE
239
A0021310480
GASKET
242
A0008330498
SEAL
251
A0008350556
COVER
254
A6278320099
GASKET KIT
257
A0109814301
CYLINDR. ROLLER BEARING
263
A0008310320
MOUNTING
266
A0029950177
HOSE BRACKET
267
A0029909600
SCREW
269
A0008310611
PLATE
272
A0009958835
CLAMP
275
A0021310080
GASKET FRONT
278
A0019986650
PLUG
281
A0149973145
SEAL RING101.19X3.53MM
284
A0001320360
SEAL RING
287
A0008330149
STRAINER
290
A0008330049
STRAINER
293
A0018356098
SEAL27X22X2MM
296
A0009908017
SCREW SRREW PLUG M22X1,5
299
A0001311776
WASHER CRANKSHAFT 50X12,5X8MM
302
A0009810978
TOLERANCE RING
305
A0009905217
SCREW SRREW PLUG 1/8"
308
A0189970745
SEAL RING
311
A0038304384
VALVE
314
A0008301324
INTERMEDIATE PIECE46MM
314
A0008300724
INTERMEDIATE PIECE WITH SCREW FITTING 34MM
314
A0008300824
INTERMEDIATE PIECE25MM
314
A0008300624
INTERMEDIATE PIECE
314
A0008300924
INTERMEDIATE PIECE15MM
329
A0008350878
FASTENER SRREW PLUG 1/4"
999
A0008101212
BEARING DIA., 31X33,8MM
999
A0008301624
INTERMEDIATE PIECE PARTS KIT, TO BE ADAPTED DURING ASSEMBLY
