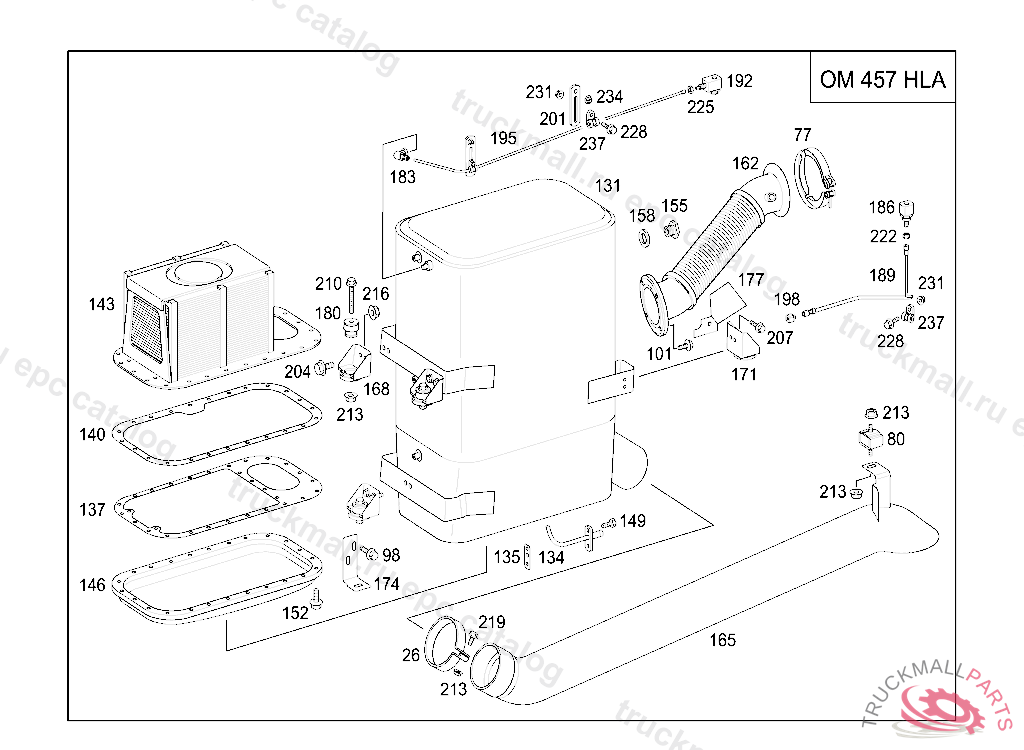

Поз.
Артикул
Описание
26
CLAMP EXHAUST SYSTEM
26
CLAMP , Replaced By: N071555124501
26
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
77
CLAMPD148
80
RUBBER MOUNTING
98
SCREW BRACKET TO CAB REAR PANEL M 8X20
101
SCREWM 10X20
131
CATALYTIC CONVERTER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.03.2010
131
CATALYST , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 28.02.2010
131
CATALYTIC CONVERTER , Replaced By: A0014907914
134
NOZZLE REDUCING AGENT, Replaced By: A0004900513
134
INJECTION NOZZLE ADDITIVE REDUCING AGENT
135
SINGLE LAYER METAL SEALTO A 000 490 02 13
137
GASKET
140
GASKET
143
PARTICULATE FILTER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.03.2010
143
PARTICLE FILTER , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 28.02.2010
146
FLOOR
146
BOTTOM , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 28.02.2010
149
SCREW INJECTION NOZZLE TO THROTTLE HOUSING
152
SCREWM8X14.5
155
SCREWTO A957 490 05 14
158
SEAL RING
162
EXHAUST PIPE
165
EXHAUST PIPE
168
ANGLE
171
ANGLE
174
BRACKETTO A001 490 27 14
177
HEAT SHIELD. PROTECTIVE PLATE
180
DASHPOT
183
CONNECTION FITTING
186
BASE PLATE
189
HOSE HIGH PRESSURE HOSE
192
BASE PLATE
195
HOSE HIGH PRESSURE HOSE
198
CONNECTION FITTING
201
BRACKET
204
SCREW , Replaced By: N910143008002
207
HEXAGON HEAD BOLT
210
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
213
NUT , Replaced By: N913023010002
213
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
216
NUT HORN TO BRACKET M8
219
SCREW BRACKET TO SIDE MEMBER M10X35
219
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
222
NUT POWER CYLINDER TO BRACKET
222
NUTM24X1.5
225
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
225
NUT FITTING TO BRACKET,230274
228
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
228
SCREW , Replaced By: N914146006102
231
NUT , Replaced By: N913023006001
234
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
237
CLAMP LINE MOUNTING 8/15
237
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
