Mercedes A0025459926 - Втулка

INTEGRO M 633.002

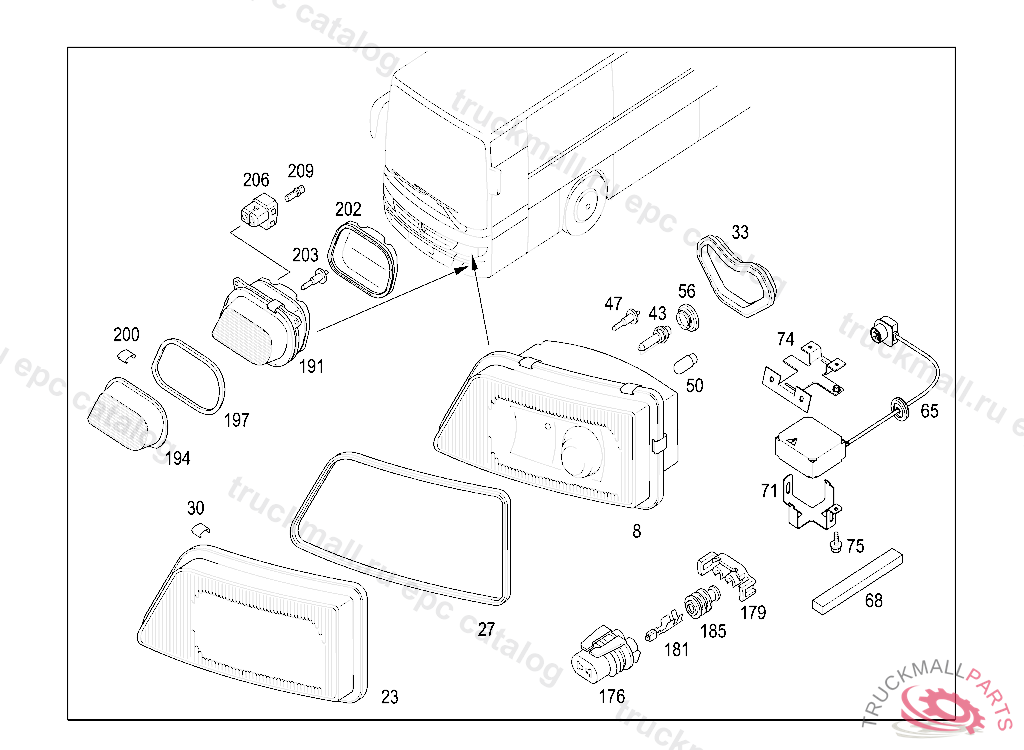

82 ELECTRICAL SYSTEM - 150 HEADLAMP,BLINKER-AND-POSITION LAMP, FRONT, BULBS IL. 1

Поз.
Артикул
Описание
8
A0005401254
HEADLAMP LITRONIC,LEFT
8
A0005401354
HEADLAMP LITRONIC,RIGHT
23
A0048263090
LENS RIGHT
23
A0048262990
LENS LEFT
27
A0018265680
SEAL
30
A0008266684
RETAINING CLAMP. SPRING , Replaced By: A1408260284
33
A0008264424
COVERING
47
N072601024270
BULB24V,70W
50
N072601024250
BULB24V-5W
56
A0018265589
RIM
65
A0008210961
SERIES TRANSFORMER
68
A0089873425
MOSS TYPE RUBBER SELF-ADHESIVE ON ONE SIDE 3X22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
71
A6296252314
BRACKET SERIES TRANSFORMER
74
A6298800914
BRACKET SERIES TRANSFORMER
75
N910105006002
HEXAGON HEAD BOLT
176
A0395457428
PIN BUSHING HOUSING BIPOLAR
179
A0015452073
LOCKING MECHANISM
181
A0075455226
PIN BUSHING1,5-2,5 MM
185
A0005454280
BOOT. GASKET
191
A0005400063
FOGLAMP LEFT
191
A0005400163
FOGLAMP RIGHT
194
A0048262290
LENS RIGHT
194
A0048262190
LENS LEFT
197
A0018265380
SEAL LEFT AND RIGHT
200
A0008266684
RETAINING CLAMP. SPRING , Replaced By: A1408260284
202
A0008266724
COVERING LEFT AND RIGHT
203
N072601024270
BULB24V,70W
206
A0185453828
PIN BUSHING HOUSING FOLDING TOP ACTUATION VALVE
209
A0025459926
ROUND PIN BUSHING2.5 MM2
