Mercedes A6336660149 - AUFTRITT

INTEGRO M 633.002

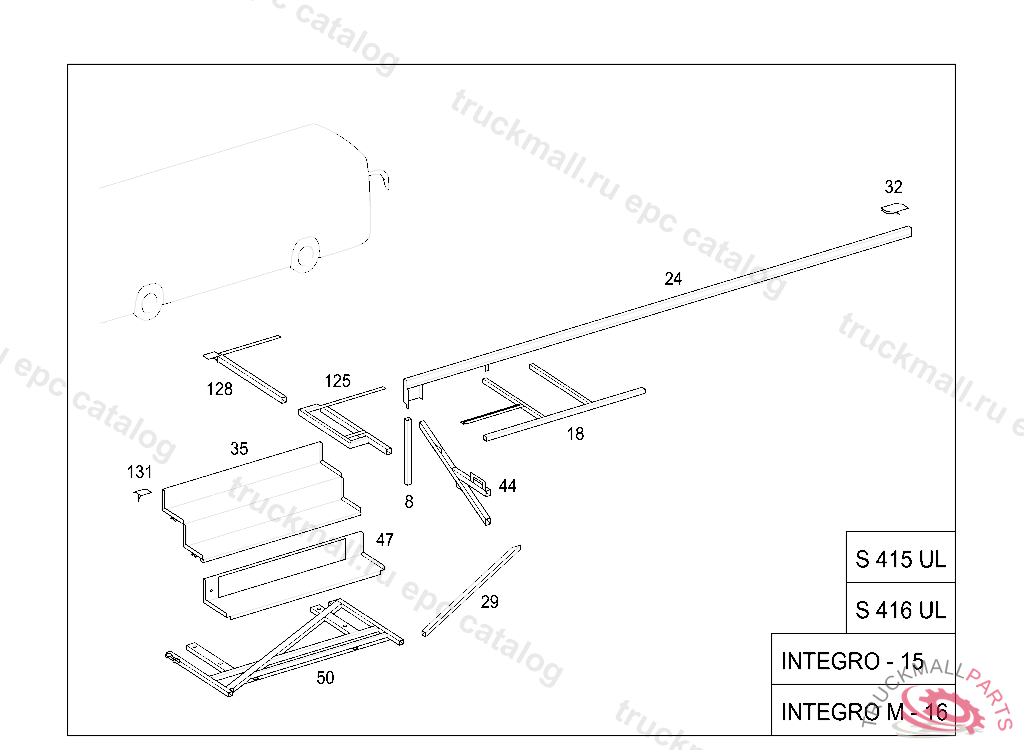

66 INSTALLATIONS - 034 CENTRAL ENTRANCE IL. 4

Поз.
Артикул
Описание
8
A6336110479
STRUD
18
A6336600530
SUPPORT IN FRONT OF CENTRAL ENTRANCE
24
A6336602630
SUPPORT FOR SEAT MOUNTING 5450MM
29
A6326110134
SUPPORT BOTTOM, IN FRONT OF CENTRAL ENTRANCE
29
A6336661026
SUPPORT BOTTOM, IN FRONT OF CENTRAL ENTRANCE
32
A6336100711
PLATE
35
A6336600529
ROCKER PANEL
35
A6336600629
ROCKER PANEL
44
A6336600030
SUPPORT IN FRONT OF CENTRAL ENTRANCE
47
A6336660149
ROCKER PANEL
50
A6336600826
FRAME BOTTOM
50
A6336600126
FRAME BOTTOM, Replaced By: A6336600826
125
A6336600024
FRAME PEDESTAL 140, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.06.2010
125
A6336600324
TUBULAR FRAME PEDESTAL 140, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.07.2010
128
A6336600124
FRAME PEDESTAL 70
128
A6336600224
FRAME PEDESTAL 30
131
A6336100611
PLATE PEDESTAL 70
