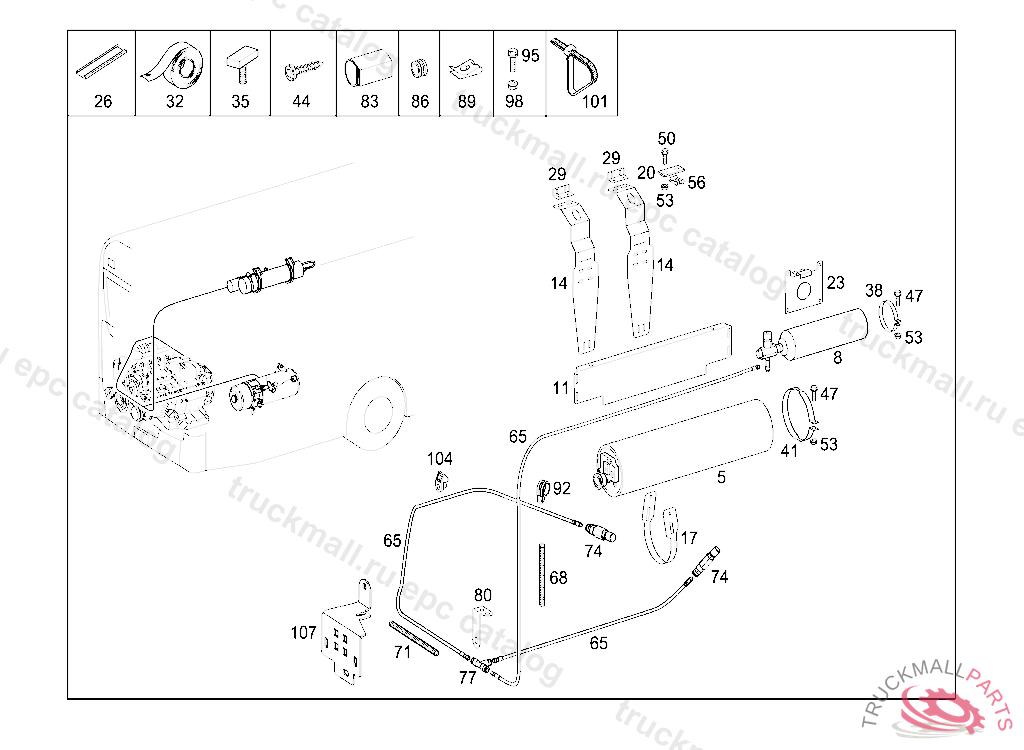

Поз.
Артикул
Описание
5
WATER CONTAINER EXTINGUISHING AGENT 6,5 L
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT ANSCHL. 90 GRAD2DR. SCHALTER
11
ASSEMBLY FRAME
14
BRACKET
17
RETAINING STRAP
20
PLATE
23
MOUNTING BRACKET
26
RUBBER STRIP
29
BRACKET
32
INSULATING TAPE40MMX500MM
35
T-SCREW
38
CLAMP76/25MM
41
CLAMP150-170X12MM
44
TAPPING SCREW CONTROL UNIT TO FIRE WALL
47
SCREW , Replaced By: N910143008000
47
SCREW BRACKET TO SIDE MEMBER M8X20
50
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
53
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
56
SPRING-THREAD NUT PROTECTIVE PLATE
65
DETECTOR TUBE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
68
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
71
SPRING , TO BE ADAPTED DURING ASSEMBLY
74
TEST CONNECTION
77
COUPLING T-FITTING
80
BRACKET
83
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
86
GROMMET
89
LOCK NUT. SPRING NUT MOUNTING PARTS
92
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
92
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
95
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
98
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
101
CABLE TIE310X5MM
104
RETAINING CLIP
107
BRACKET
