Mercedes A0009977176 - WINKELVERSCHRAUBUNG KOMPL

INTEGRO M 633.002

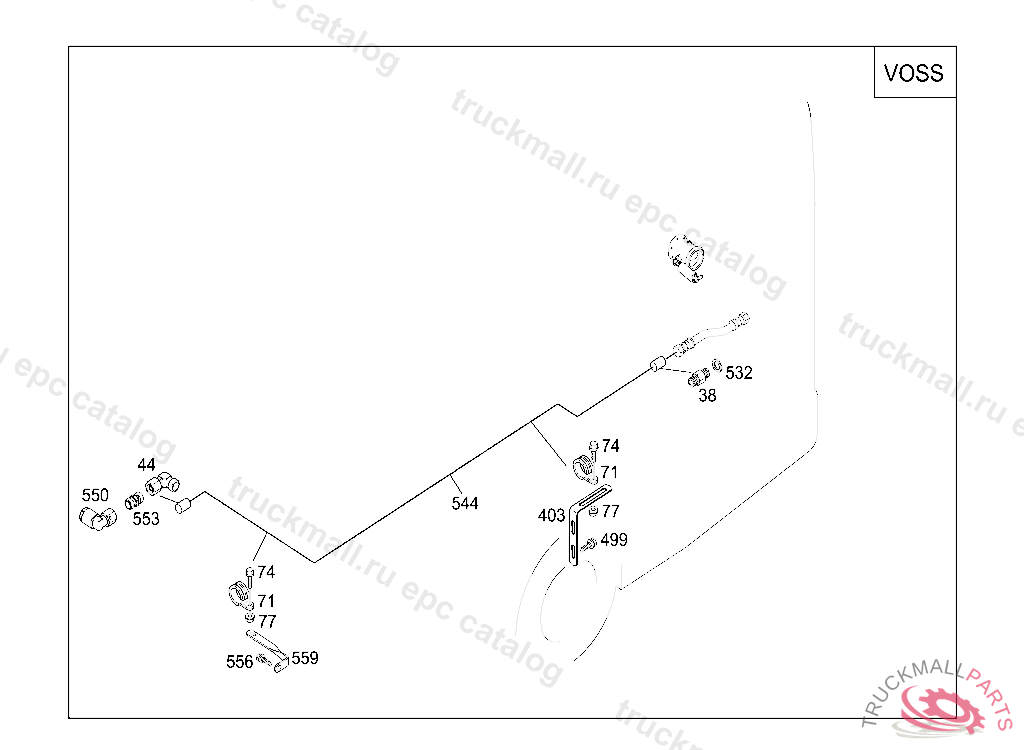

43 EXHAUST BRAKE - 060 ENGINE SHUT-OFF AND EXHAUST BRAKE IL. 10

Поз.
Артикул
Описание
38
A0039908768
FITTINGM12X1.5/M14X1.5
44
A0039908771
ELBOW FITTING
71
N000000007511
CLAMP10/15
71
N000000007515
CLAMP38/20
71
N000000007512
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
71
N000000000350
CLAMP LINE MOUNTING
71
N000000007510
CLAMP LINE MOUNTING 8/15
74
N000000003765
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
74
N910143006005
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
77
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
77
N910112006001
NUT , Replaced By: N913023006001
403
A6294340240
BRACKET
499
N910105010040
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
532
A0059972940
SEAL RING 3/2-WAY VALVE
544
A6334301465
COMPRESSED AIR LINED8
550
A0009977176
THREADED ELBOW COMPLETENG8/M16X1.5
553
N000000006184
FITTING
556
N000000005514
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
559
A6274660140
BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.10.2010
