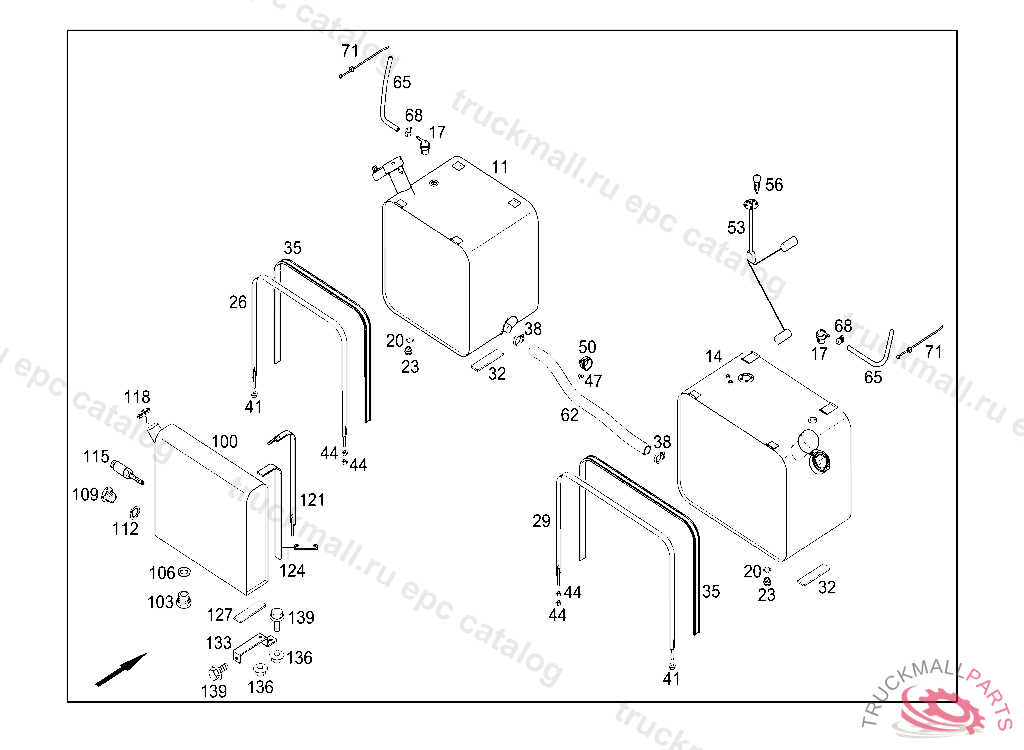

Поз.
Артикул
Описание
11
FUEL TANK LEFT
11
FUEL TANK LEFT
11
FUEL TANK LEFT, Replaced By: A6334701301
14
FUEL TANK RIGHT, Replaced By: A6334701302
14
FUEL TANK RIGHT NOWOTECH
14
FUEL TANK RIGHT
17
PRESSURE RELIEF VALVE , FROM 01.07.09
20
SCREW PLUG
20
SCREW PLUGM18X1.5 NOWOTECH
23
SEAL RING SOLENOID VALVE A 18X24
26
STRAP LEFT 1705MM
29
STRAP RIGHT 1870MM
32
ADHESIVE STRIP. BASE40 X 2 MM
35
RUBBER STRIP
38
CLAMP
41
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
44
NUT
47
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
50
CLAMP48/20
50
CLAMP OIL LINE TO BRACKET
53
SENDER UNIT
56
TAPPING SCREW MOUNTING PARTS 4.8X16
62
HOSE (SHUT OFF COCK), ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
HOSE940MM, Replaced By: A0014760426
65
LINE7,5X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
68
CLAMP10-16X9MM
71
LOOM TIE
100
TANK
103
SCREW PLUG , Replaced By: N007604018101
106
SEAL RING VALVE TO VALVE,K 025179
109
SCREW PLUG FUEL TANK
112
SEALING RING. SEAL RING ENGINE BREATHING
115
SENDER UNIT
118
FILLER CAP
121
STRAP
124
RUBBER STRIP
127
ADHESIVE STRIP. BASE40 X 2 MM
133
BRACKET FUEL OIL TANK
136
NUT HORN TO BRACKET M8
139
SCREW BRACKET TO CAB REAR PANEL M 8X20
