Mercedes A6337550388 - BETAETIGUNGSSTANGE R

INTEGRO M 633.002

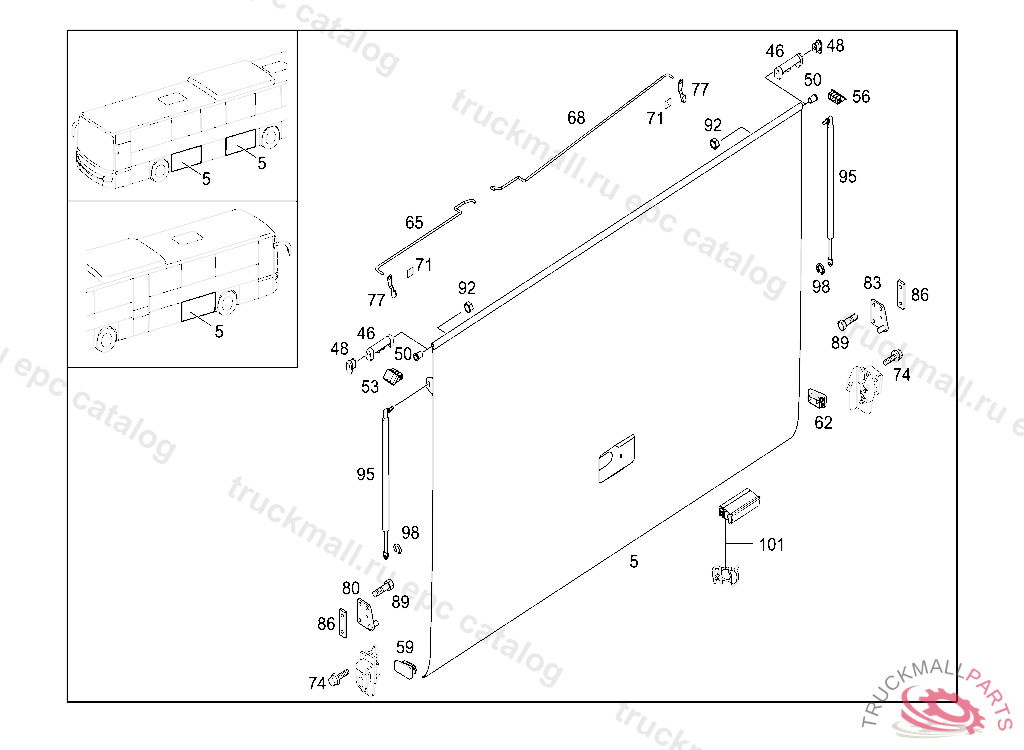

75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 3

Поз.
Артикул
Описание
5
A6337500804
FLAP SWING FLAP L1810MM
5
A6337500195
HINGED DOOR
46
A0009927003
BUSHING
48
A0009983823
PROTECTIVE CAP
50
A0009926205
BUSHING
53
A0009878945
LOCKING CAP
56
A0009879045
LOCKING CAP
59
A0009877645
LOCKING CAP
62
A0009877745
LOCKING CAP
65
A6337550288
OPERATING ROD LEFT L894MM
65
A6337550888
ROD LEFT L184MM
65
A6337550088
ROD LEFT L655MM
65
A6297540219
ROD. STRUTL437 MM
65
A6327550488
RODL822 MM
65
A6297541019
ROD. STRUTL175 MM
65
A6327550288
ROD LEFT L944,5MM
68
A6297540319
ROD. STRUTL498 MM
68
A6297541119
ROD. STRUTL246 MM
68
A6327550388
ROD RIGHT L997MM
68
A6337550188
ROD RIGHT L707,5MM
68
A6327550588
RODL883 MM
68
A6337550988
ROD RIGHT L234MM
68
A6337550388
ROD RIGHT L948.5MM
71
A0009940145
LOCK
74
N910105006002
HEXAGON HEAD BOLT
77
A0007580042
LOCK
80
A0007580003
STRIKER
83
A0007580103
STRIKER
86
A6297550111
PLATE
89
N910105008041
SCREW , Replaced By: N910143008000
92
N913012008001
NUT HINGE LEVER TO MOUNTING
92
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
95
A6297500936
SPRING PNEUMATIC SPRING 520 N
95
A0029807064
SPRING PNEUMATIC SPRING 250N
95
A6297500036
SPRING PNEUMATIC SPRING 330N
95
A0029804264
GAS PRESSURE STRUT420N
95
A6339800664
GAS SPRING630N
98
N000471008000
LOCK RING
101
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
