Поз.
Артикул
Описание

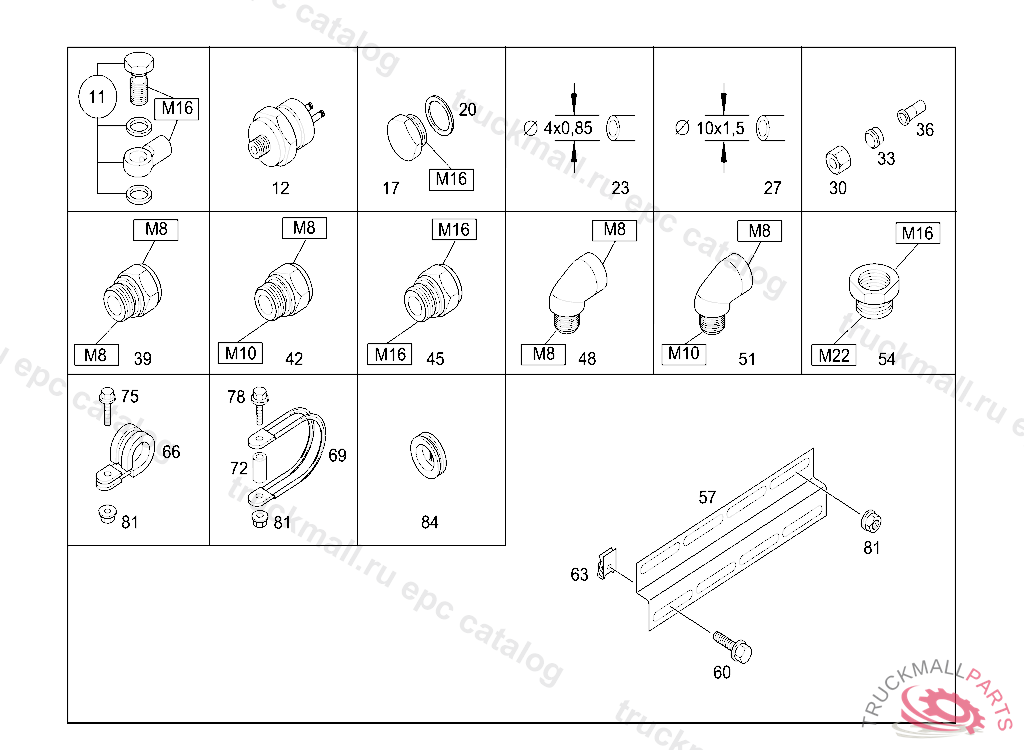

11
ELBOW FITTING , Replaced By: A0049903971
11
ELBOW FITTING LUBRICATING LINE TO DISTRIBUTOR VOGEL,M 16X1.5/16X1.5
12
SWITCH , Replaced By: A0035450614
12
SWITCH , Replaced By: A0035452014, +001A0029906771, +001N007603016401
17
VERSCHLUSSSCHRAUBE. SCREW PLUG , Replaced By: A0005711256
20
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
23
HOSE FROM DISTRIBUTOR TO LUBRICATING POINTS 4X0.85 MM, ORDER BY THE METER
27
HOSE , ORDER BY THE METER, Replaced By: A0259978682
30
FITTING , Replaced By: A0009974334
33
SEAL CONE , Replaced By: A0019909567
36
PIN BUSHING FOR LINE CONNECTION BEKA-MAX , TO 025 997 86 82
36
PIN BUSHING , Replaced By: A0005730753
39
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR VOGEL, M 8X1
39
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR BEKA-MAX, M 8X1
42
CONNECTOR TRAILER COUPLING,FRONT BEKA-MAX
42
CONNECTOR TRAILER COUPLING,FRONTVOGEL
45
CONNECTOR
48
ELBOW , Replaced By: A0005733530
51
ELBOW LINE CONNECTIONS VOGEL, M 10X1
54
REDUCTION FITTINGM22X1.5/M16X1.5
57
"Z" SECTION170MM
57
"Z" SECTION225LG
57
RAIL LINE MOUNTING 115 LG.
60
SCREW PUMP TO BRACKET
63
NUTM8
63
LOCK NUT. SPRING NUT MOUNTING PARTS
66
CLAMP LINE MOUNTING
69
CLAMP LINE MOUNTING
69
CLAMP LINE MOUNTING 110X15
72
SPACER TUBE LINE MOUNTING 30 MM
72
SPACER SLEEVE
75
SCREW OIL TANK TO CLAMP
78
SCREW SHACKLE TO CONSOLE
78
SCREW , Replaced By: N304017006026
81
NUT
84
GROMMET FOR CABLE HARNESS DIA.: 10-14MM
