Mercedes A0009985340 - ANSCHLAGPUFFER

INTEGRO L 633.004

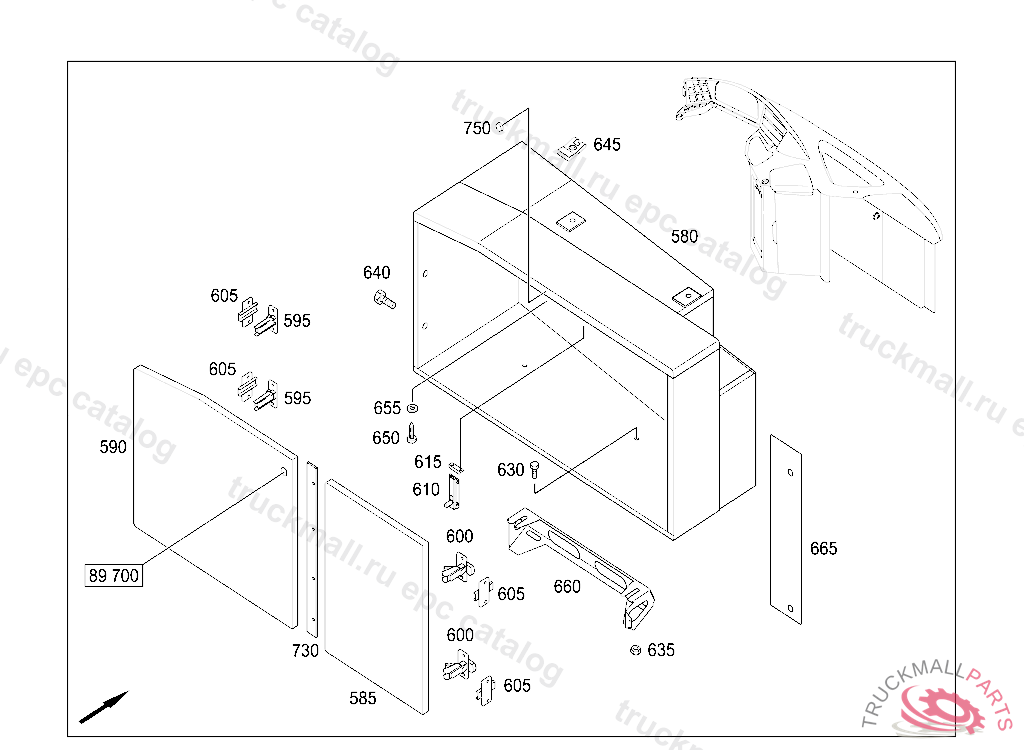

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 6

Поз.
Артикул
Описание
580
A6338400005
STOWAGE COMPARTMENT
585
A6338400187
DOOR RIGHT
590
A6338400287
DOOR LEFT, Replaced By: A6338400487
590
A6338400487
CABINET DOOR LEFT
595
A0008460051
HINGE
600
A0008460151
HINGE DEGREES: 170
605
A0008460011
PLATE
610
A0008460266
BOLT
610
A0008460166
LATCH , Replaced By: A0008460266
615
A0008460157
END PIECE
630
N910105008064
SCREWM6X65
630
N910105008042
SCREW , Replaced By: N910143008009
635
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
640
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
645
A0039948545
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
650
N000000000533
TAPPING SCREW. SHEET METAL SCREW4.8X16
655
N000125008445
WASHER PUMP TO CONSOLE
660
A6296830032
CONSOLE DEEP FREEZER
665
A6336890107
COVERING
730
A0009872120
EDGE PROTECTION
750
A0009985340
BUFFER STOP
999
N000000000464
TAPPING SCREW HANDLE TO PANELLING
999
N000000003302
TAPPING SCREW2.9X16
