Главная
›
Mercedes
›
BUS
›
INTEGRO L
›
633.004
›
61 SUBSTRUCTURE
›

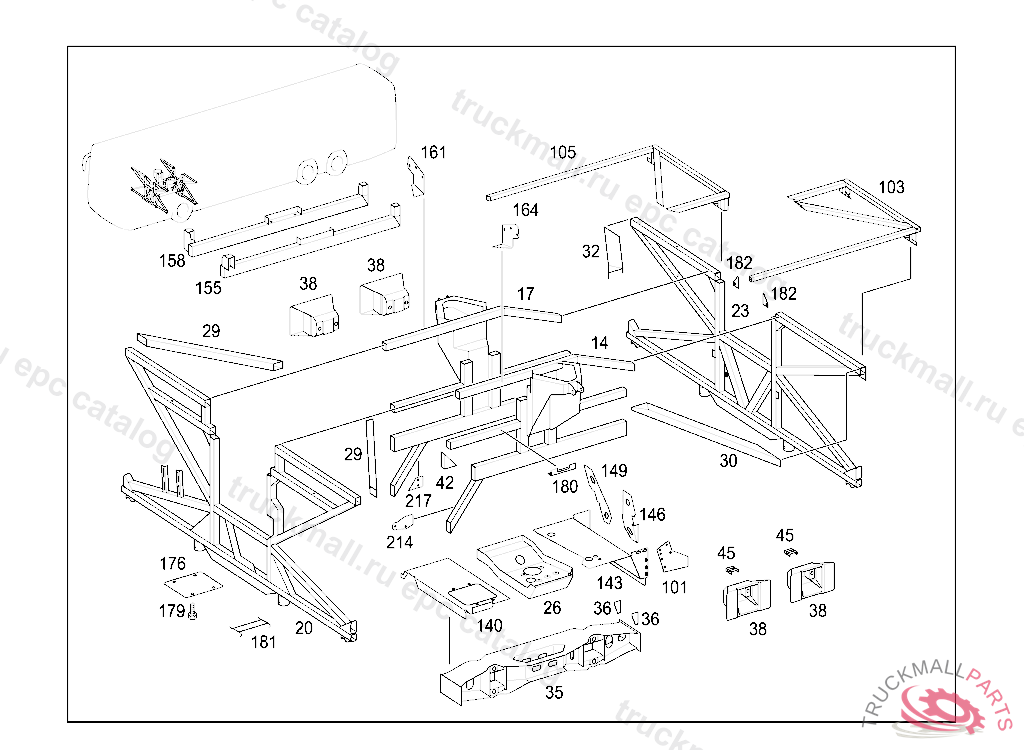

120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 4
Mercedes A6276121236 - Halter
INTEGRO L 633.004
61 SUBSTRUCTURE - 120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 4
Поз.
Артикул
Описание
14
A6336109507
LONGITUDINAL MEMBER LEFT
14
A6336100010
SIDE MEMBER LEFT
17
A6336100110
SIDE MEMBER RIGHT
17
A6336109607
LONGITUDINAL MEMBER RIGHT
20
A6336100114
CROSS MEMBER
20
A6336101321
CROSS MEMBER
23
A6336100014
CROSS MEMBER
23
A6336101421
CROSS MEMBER
26
A6296100920
CROSS MEMBER
29
A6336111234
STRUD
30
A6336100031
CONSOLE LEFT
32
A6336100131
CONSOLE RIGHT
35
A6296101820
CROSS MEMBER , Replaced By: A6326100220
35
A6326100220
CROSS MEMBER
35
A6296101320
CROSS MEMBER
36
A6296119911
PLATE70X43MM
38
A6296115027
BEARING FORMED PART
42
A6336111534
STRUD
45
A6276121236
BRACKET
101
A6296105100
BRACKET
101
A6296102500
BRACKET
103
A6336101307
FLOOR CARRIER LEFT
105
A6336101407
FLOOR CARRIER RIGHT
140
A6296104408
COVERING FRONT
143
A6296111708
COVERING REAR
143
A6296117508
COVERING
143
A6336100388
COVER
146
A6296110716
REINFORCEMENT LEFT
149
A6296110816
REINFORCEMENT RIGHT
155
A6336103007
BEAM LEFT
155
A6336102007
BEAM LEFT
158
A6336102207
BEAM RIGHT
158
A6336103407
161
A6336112210
BRACKET
164
A6336112310
BRACKET
176
A6296110808
COVERING272X320MM
179
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
179
N910105006004
SCREW , Replaced By: N914146006102
180
A6296112412
ANGLE LEFT 195MM
181
A0009870922
SEALING TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
182
A6296117511
PLATE RIGHT 70X45MM
214
A6296124724
BRACKET
217
A6336113710
BRACKET
