Главная
›
Mercedes
›
BUS
›
INTOURO
›
633.051
›
75 OUTSIDE FLAPS
›
650 MAINTENANCE FLAP LEFT IL. 10
Mercedes A0008211097 - SCHUTZSCHLAUCH

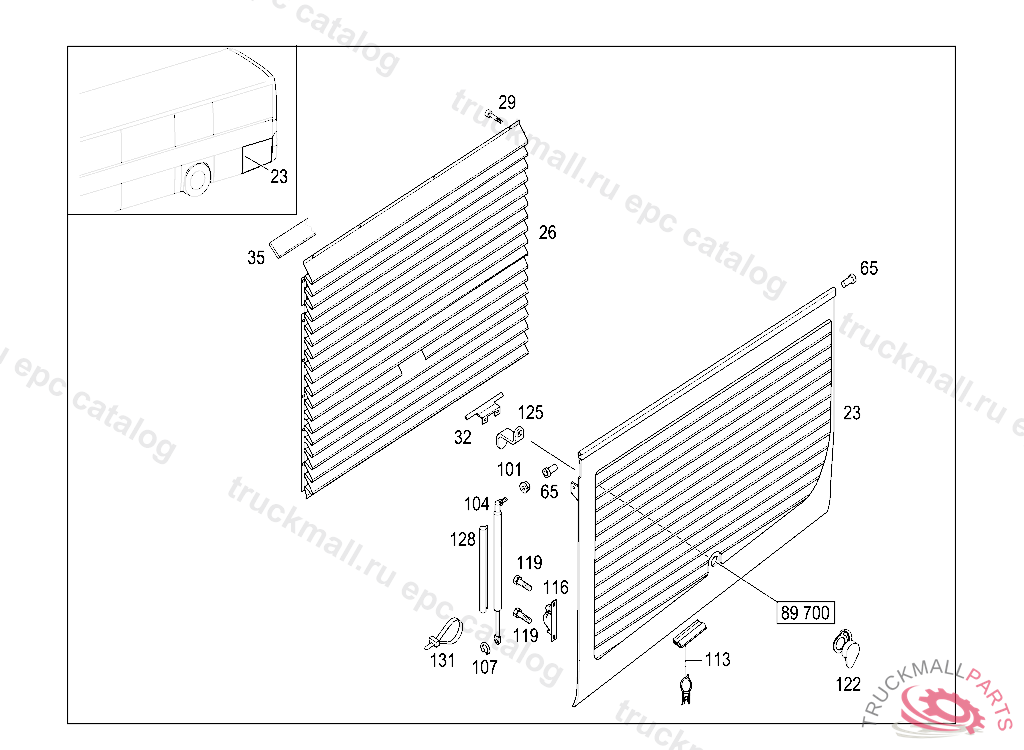

INTOURO 633.051
75 OUTSIDE FLAPS - 650 MAINTENANCE FLAP LEFT IL. 10
Поз.
Артикул
Описание
23
A6337502603
26
A6337500044
29
N000000001526
HEXALOBULAR BOLTM5X12
32
A6297545214
BRACKET
35
A0029890998
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
A0009926205
BUSHING
101
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
104
A6297500036
SPRING PNEUMATIC SPRING 330N
107
N000471008000
LOCK RING
113
A0007570174
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
116
A0007501250
LOCK
119
N910105005003
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
122
A0007580055
CAP
125
A0019880460
LATCH PLATE65X16X37 MM
128
A0008211097
HOSE HEAT INSULATION, ORDER BY THE METER
131
A0029972390
CABLE TIE , Replaced By: A0049971890
999
A0059976190
LOOM TIE
