Mercedes A0008350678 - Защелка панели кухни

INTOURO M 633.052

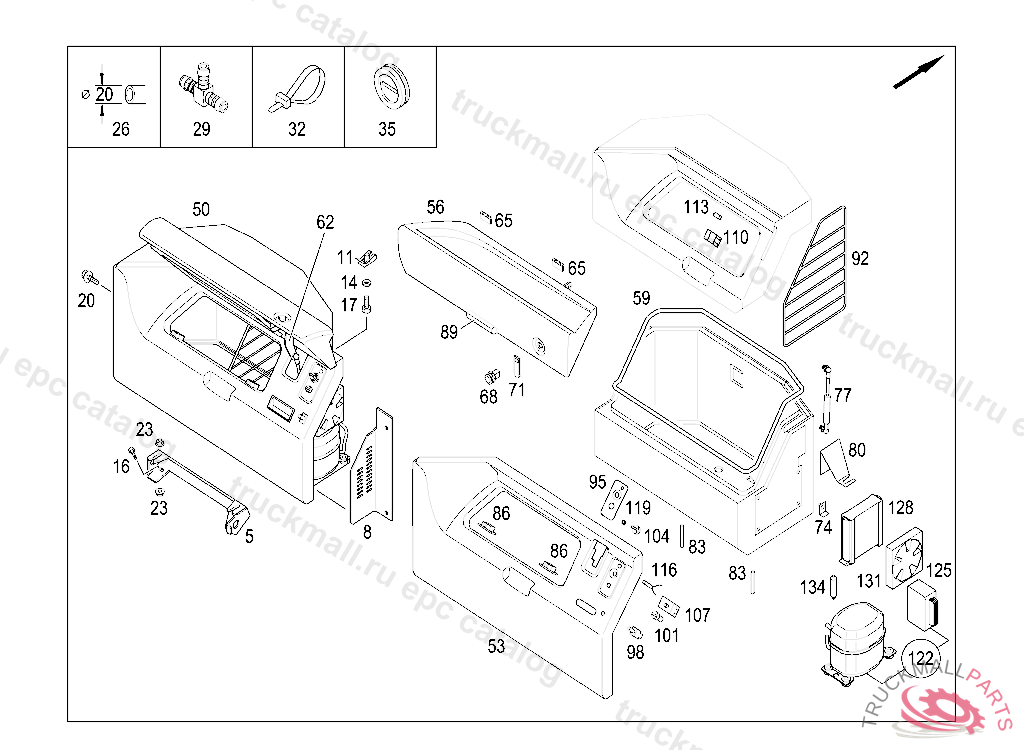

83 HEATING AND VENTILATION - 700 REFRIGERATOR

Поз.
Артикул
Описание
5
A6296830032
CONSOLE DEEP FREEZER
8
A6336890207
COVERING
11
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
14
N000125008445
WASHER PUMP TO CONSOLE
16
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
17
N910105008039
SCREW , Replaced By: N910143008002
20
N000000001478
HEXALOBULAR BOLT BRACKET MOUNTING M6X25
23
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
26
A0009871843
HOSE TRANSPARENT D20X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
29
A0009978974
T-FITTING
32
A0029972490
CABLE TIE310X5MM
35
A0009876441
GROMMET
50
A6338200006
REFRIGERATOR
53
A0008350354
APPARATUS PANEL
56
A0008302552
COVERING
59
A0019970649
GASKET
62
A0008330343
LEVER
65
A0008360252
HINGE
68
A0006803484
FASTENERL22MM
71
A0009882343
LATCH PLATE
74
A0008300512
ANGLE
77
A0008370901
ADJUSTER
80
A0008350583
STRUT
83
A0009901715
THREADED PIN
86
A0008350678
FASTENER
89
A0008380321
SHELL TYPE HANDLE
92
A0008431918
GRILLE
95
A0008370475
ORNAMENTAL COVER
98
A0058206010
SWITCH (PRESSURE SWITCH)
101
A0008358214
BRACKET
104
A6278330013
KNOB
107
A0008357079
THERMOSTAT
110
A0018205801
INTERIOR LAMP
113
N072601024131
BULB24V/5W
116
A0005400262
LAMP
119
A0009914571
RETAINING CLIP
122
A0018306060
COMPRESSORR134
125
A0008358036
CONTROL UNIT
128
A0008307170
CONDENSER
131
A0008356407
BLOWER
134
A0008341569
DEHYDRATOR
