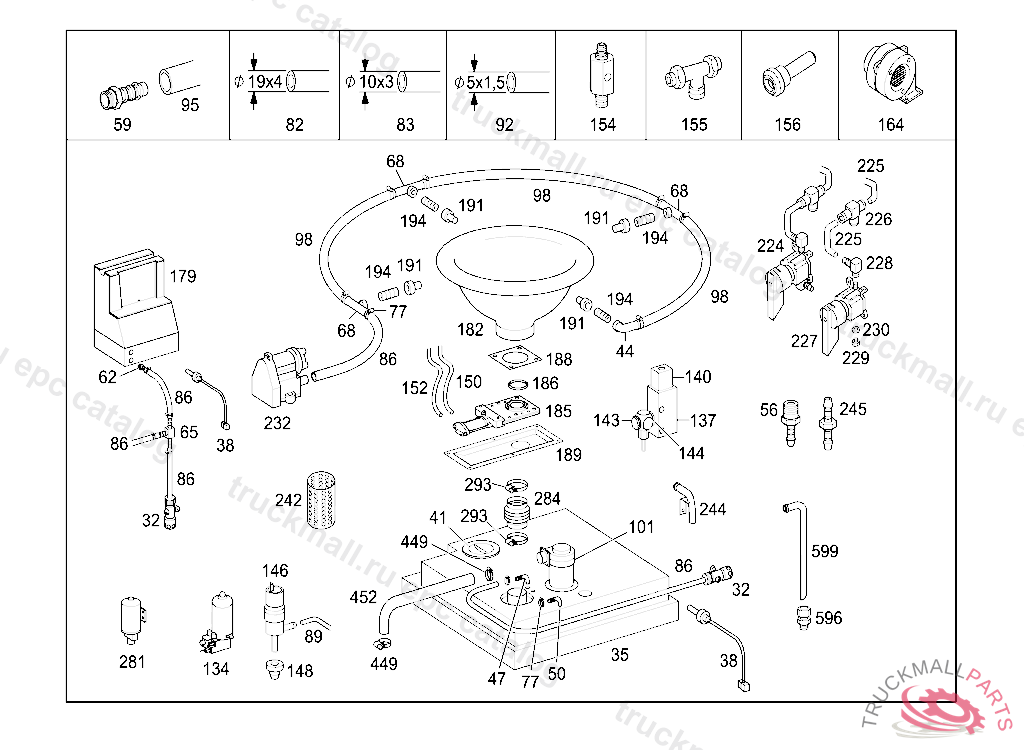

Поз.
Артикул
Описание
32
CONTROL STOP. FASTENER CONTROL STOP
35
RECEPTACLE FECES CONTAINER
38
SWITCH WASHER WATER LEVEL SENDER UNIT
44
FITTING ANGULAR SCREW FITTING 8 R1/4"
47
FITTING. ANGLE ANGULAR SCREW FITTING 19 R3/4"
50
ANGLE. FITTING ANGULAR SCREW FITTING 12/R1/2
56
FITTING SCREW-IN FITTING 6/R1/4
59
FITTING SCREW-IN FITTING 25/R1
62
FITTING SCREW-IN FITTING 12/R1/2
65
T-FITTING CONNECTION FITTING
68
FITTING T SCREW-IN FITTING
77
CLAMP12-22
82
BRAIDED HOSE19 X 4, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
83
HOSE TRANSPARENT PVC WITH FABRIC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
86
HOSE PVC 13X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
89
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
92
HOSE5X1,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
95
HOSE TRANSPARENT PVC WITH FABRIC 25 X 4,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
HOSE COMPRESSED AIR HOSE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
BLOWER SOIL VENT
137
VALVE COMPLETE
140
VALVE (SOLENOID VALVE)
146
CIRCULATION PUMP , Replaced By: A0008606226
146
CENTRIFUGAL PUMP , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2008
148
SEAL PUMP TO RESERVOIR
150
HOSE BLUE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
152
HOSE NATURAL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
154
CONNECTION FITTING
155
DISTRIBUTOR FOR HOSE 6 MM
164
IMPELLER BLOWER24V
179
WATER CONTAINER FRESH WATER TANK
182
WC FLUSHING TRAY
185
SHUTOFF SLIDE
186
SEAL RING
188
ADAPTER
189
COVERING
191
NOZZLE FLUSHING NOZZLE
194
GROMMET
224
DRAIN VALVE
224
DRAIN VALVE , Replaced By: A0008661152
225
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
226
DISTRIBUTOR FOR HOSE 6 MM
227
VALVE
228
ANGLE SCREW-IN FITTING EVACUATION
229
SCREW-IN FITTING EVACUATION
230
SEALING RING EVACUATION
232
WATER PUMP WATER FLUSH
999
RETAINING STRAP
999
SEAL
999
SHAPED SECTIONPVCH - PROFIL GEBOGEN
999
LAVATORY
999
LAVATORY
