Главная
›
Mercedes
›
BUS
›
S 412 UL
›
633.100
›
61 SUBSTRUCTURE
›

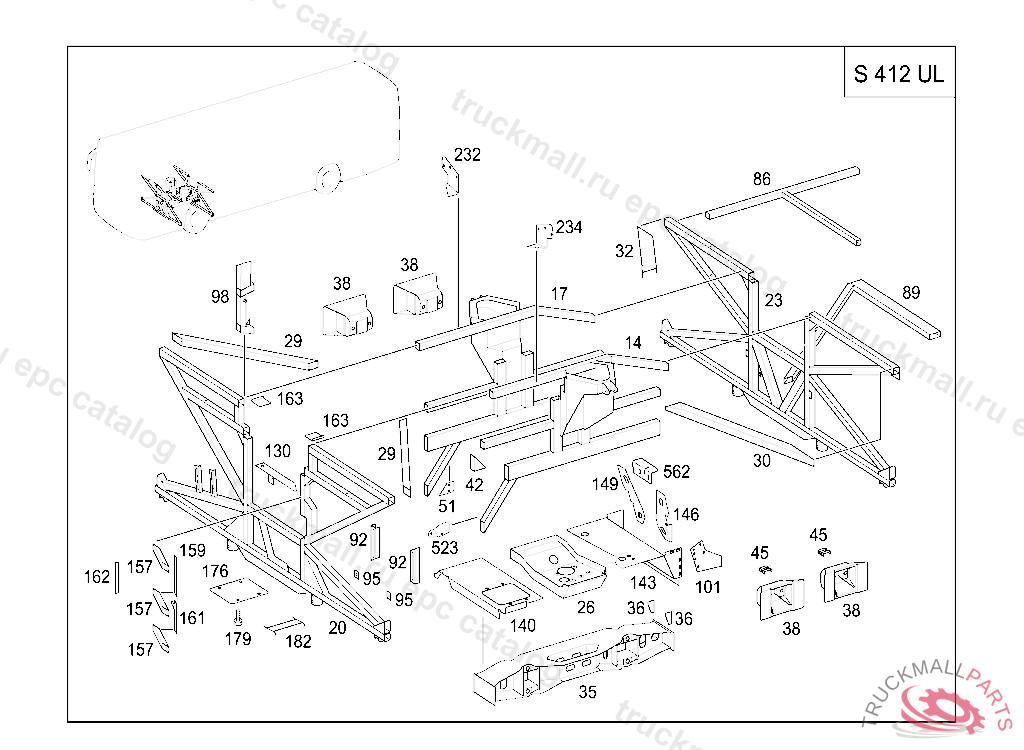

120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 8
Mercedes A6336120470 - BEFESTIGUNGSSCHIENE
S 412 UL 633.100
61 SUBSTRUCTURE - 120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 8
Поз.
Артикул
Описание
14
A6336109507
LONGITUDINAL MEMBER LEFT
14
A6336100010
SIDE MEMBER LEFT
17
A6336100110
SIDE MEMBER RIGHT
17
A6336109607
LONGITUDINAL MEMBER RIGHT
20
A6336101321
CROSS MEMBER
20
A6336100114
CROSS MEMBER
23
A6336100014
CROSS MEMBER
23
A6336101421
CROSS MEMBER
26
A6296100920
CROSS MEMBER
29
A6336111234
STRUD
30
A6336100031
CONSOLE LEFT
32
A6336100131
CONSOLE RIGHT
35
A6326100220
CROSS MEMBER
35
A6296101820
CROSS MEMBER , Replaced By: A6326100220
35
A6296101320
CROSS MEMBER
36
A6296119911
PLATE70X43MM
38
A6296115027
BEARING FORMED PART
42
A6336111534
STRUD
45
A6276121236
BRACKET
51
A6336113710
BRACKET
92
A6336120470
RAIL FUEL-OIL TANK
95
A6276101200
BRACKET
98
A6336101007
FRAME GIRDER
101
A6296102500
BRACKET
101
A6296105100
BRACKET
130
A6336100225
REINFORCEMENT
140
A6296104408
COVERING FRONT
143
A6296117508
COVERING
143
A6296111708
COVERING REAR
143
A6336100388
COVER
146
A6296110716
REINFORCEMENT LEFT
149
A6296110816
REINFORCEMENT RIGHT
157
A6336111979
STRUT
159
A6336110156
COVER PLATE
161
A6336110456
COVER PLATE
162
A6336110356
COVER PLATE
163
A6336110282
REST ANGLE
176
A6296110808
COVERING272X320MM
179
N910105006004
SCREW , Replaced By: N914146006102
179
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
182
A0009870922
SEALING TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
232
A6336112210
BRACKET
234
A6336112310
BRACKET
523
A6296124724
BRACKET
562
A6326112310
BRACKET
