Mercedes A6336124309 - AUFLAGEWINKEL

S 412 UL 633.100

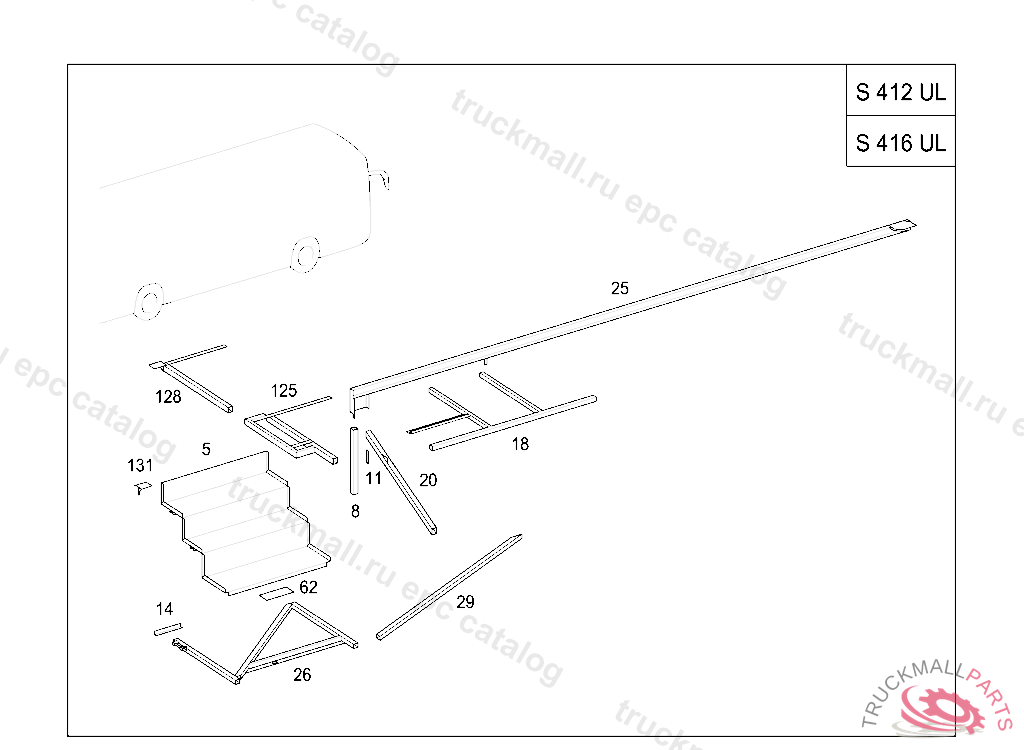

66 INSTALLATIONS - 034 CENTRAL ENTRANCE IL. 1

Поз.
Артикул
Описание
5
A6336600329
ROCKER PANEL
8
A6336110479
STRUD
11
A6336120113
PLATE
14
A6336124309
ANGLE
18
A6336603130
SUPPORT IN FRONT OF CENTRAL ENTRANCE
20
A6336600930
SUPPORT
25
A6336603730
SUPPORT FOR SEAT MOUNTING
25
A6336603630
SUPPORT FOR SEAT MOUNTING
26
A6336600726
FRAME BOTTOM
29
A6336660826
SUPPORT BOTTOM, IN FRONT OF CENTRAL ENTRANCE
29
A6336660627
SUPPORT BOTTOM, IN FRONT OF CENTRAL ENTRANCE
62
A6296128311
PLATE2X25X92MM
125
A6336600324
TUBULAR FRAME PEDESTAL 140, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.07.2010
125
A6336600024
FRAME PEDESTAL 140, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.06.2010
128
A6336600224
FRAME PEDESTAL 30
128
A6336600124
FRAME PEDESTAL 70
131
A6336100611
PLATE PEDESTAL 70
