Mercedes N304017008021 - АВТОЗАПЧАСТЬ

S 412 UL 633.100

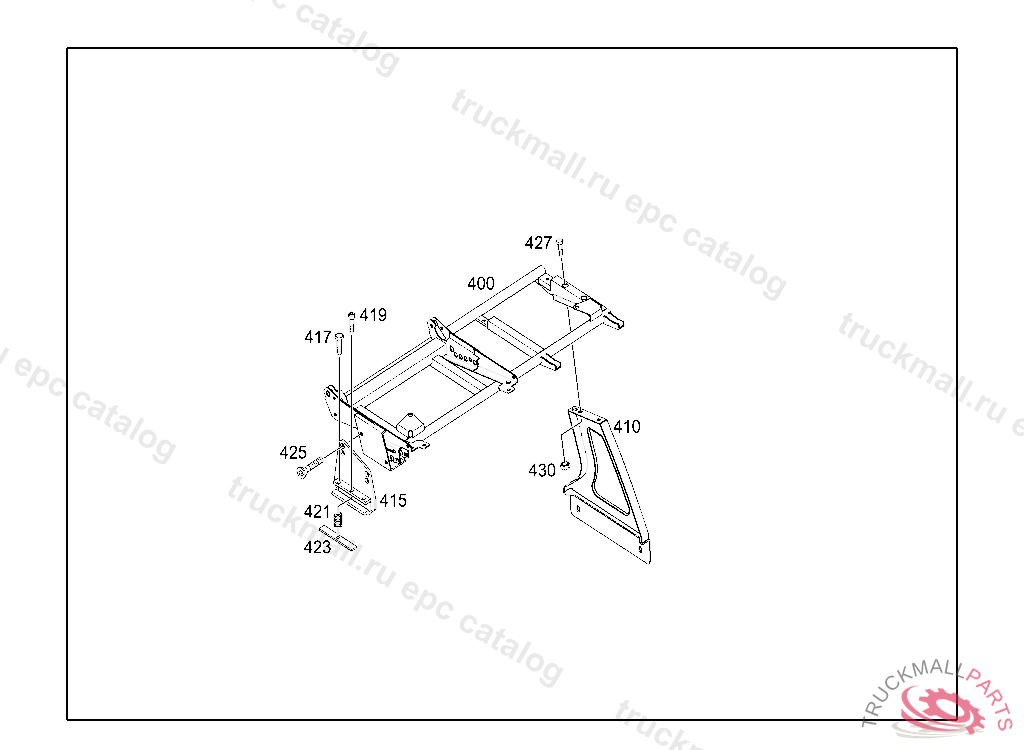

95 MULTIBLE OCCUPANCY SEAT - 045 PASSENGER SEATS, DOUBLE SEAT: CXR SEATING IL. 7

Поз.
Артикул
Описание
400
A6299500920
SEAT FRAMEWORK HIGH SEAT (RAISED 50 MM),RIGHT,STRUCTURAL WIDTH 2.55 MM 2550MM
400
A6299501120
SEAT FRAMEWORK HIGH SEAT,RIGHT
410
A6299508217
SEAT BASE STRAIGHT,RIGHT
410
A6299508017
SEAT BASE OFFSET,RIGHT
415
A6299500624
SUPPORT
417
N304017008021
SCREW PIPE CLAMP
419
A0019907020
SCREWM 8 X 33
421
A0099932001
SPRING1,25X10X29,5MM
423
A6299590311
PLATE
425
A0019908120
SCREW W HEXAGON SOCKETM 8 X 16
427
A6299590171
SCREWM 10 X 14
430
N910112010001
NUT , Replaced By: N913023010002
