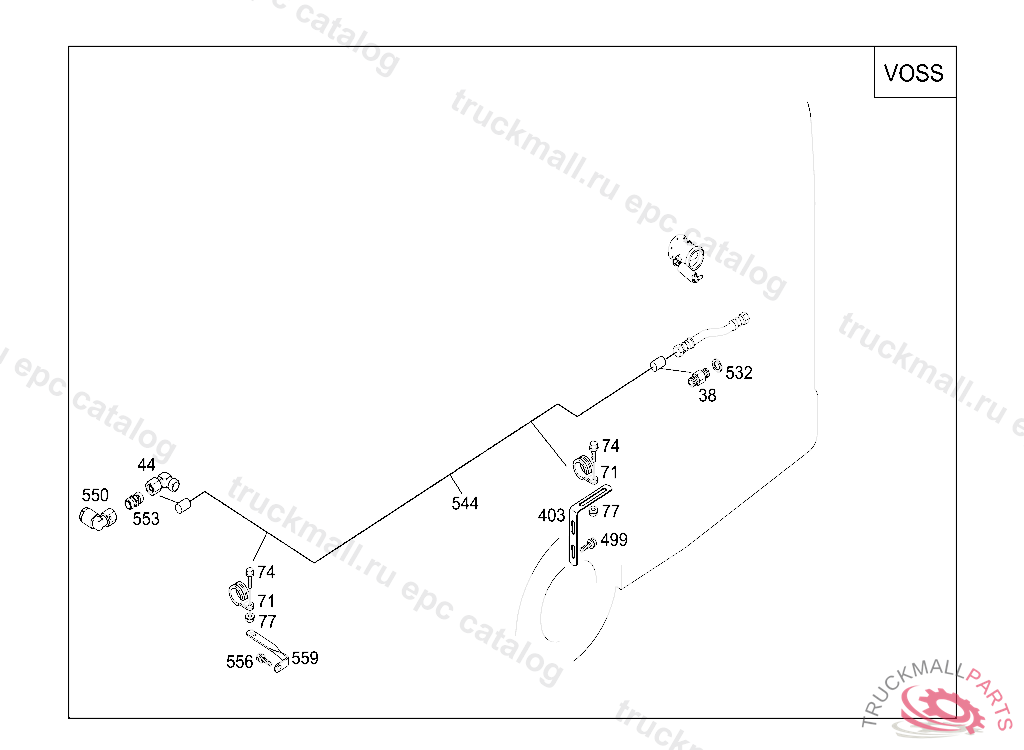

Поз.
Артикул
Описание
38
FITTINGM12X1.5/M14X1.5
44
ELBOW FITTING
71
CLAMP LINE MOUNTING
71
CLAMP LINE MOUNTING 8/15
71
CLAMP10/15
71
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
71
CLAMP38/20
74
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
74
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
74
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
77
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
77
NUT , Replaced By: N913023006001
403
BRACKET
499
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
532
SEAL RING 3/2-WAY VALVE
544
COMPRESSED AIR LINED8
550
THREADED ELBOW COMPLETENG8/M16X1.5
553
FITTING
556
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
559
BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.10.2010
