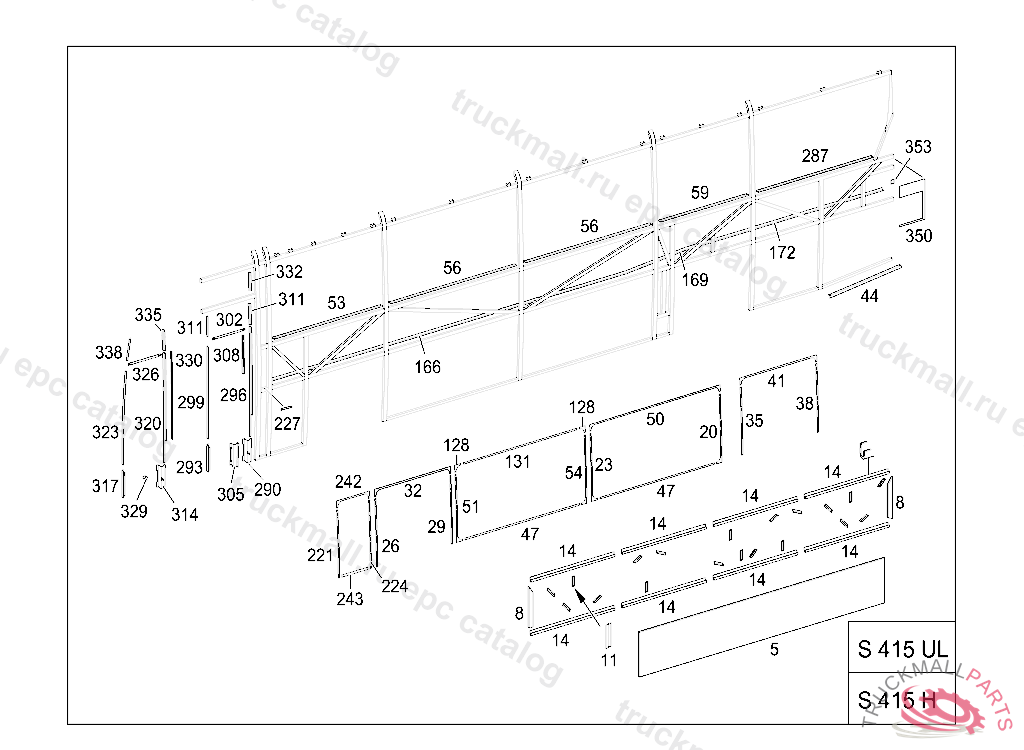

Поз.
Артикул
Описание
5
PANELLING10615MM
8
PAD591MM
11
BRACKET150LG
14
RAIL
20
ANGLE LATERAL 836LG
23
ANGLE LATERAL 836LG
26
ANGLE LATERAL
29
ANGLE
32
ANGLE1268MM
35
ANGLE
38
ANGLE
41
ANGLE1260MM
44
ANGLE550 LG
47
ANGLE2135MM
50
ANGLE2139 LG
51
ANGLE
51
ANGLE LATERAL 836LG
53
ANGLE SIDE WINDOW PANES 1875LG
54
ANGLE
54
ANGLE LATERAL 836LG
56
ANGLE2135LG
59
ANGLE1570MM
128
REINFORCEMENT
131
ANGLE2000MM
131
ANGLE2139 LG
166
RAIL4225MM
169
RAIL3140MM
172
RAIL2540MM
221
ANGLE LATERAL 823LG
221
ANGLE LATERAL 836LG
224
ANGLE LATERAL 836LG
224
ANGLE LATERAL 823LG
227
ANGLE78MM
242
ANGLE TOP 524MM
242
ANGLE TOP 520MM
243
ANGLE BOTTOM 524LG
287
ANGLE1955MM
290
ANGLE
293
ANGLE
296
ANGLE
299
ANGLE
302
ANGLE
305
ANGLE , UP TO IDENT NO. 103691 ALSO INSTALLED ON 103693 , 103694 , 103695 , 103759 , 103760 , 103805 , 103806 , 103831
308
PANELLING
311
ANGLE340MM
314
ANGLE
317
ANGLE
320
ANGLE
323
ANGLE
326
ANGLE
329
ANGLE , FROM IDENT NO. 103692 EXCEPT FOR 103693 , 103694 , 103695 ,103759 , 103760 , 103805 , 103806 , 103831
329
ANGLE , UP TO IDENT NO. 103691 ALSO INSTALLED ON 103693 , 103694 , 103695 , 103759 , 103760 , 103805 , 103806 , 103831
329
ANGLE , Replaced By: A6336310225
330
PANELLING
332
ANGLE97LG
335
ANGLE275LG
338
ANGLE
350
PANELLING
353
RUBBER BUFFER FLAP TO LEVER, NO.8316INO.7C52INO.9051I I II I
