Mercedes A6326890012 - BEFESTIGUNGSWINKEL L

S 415 UL 633.101

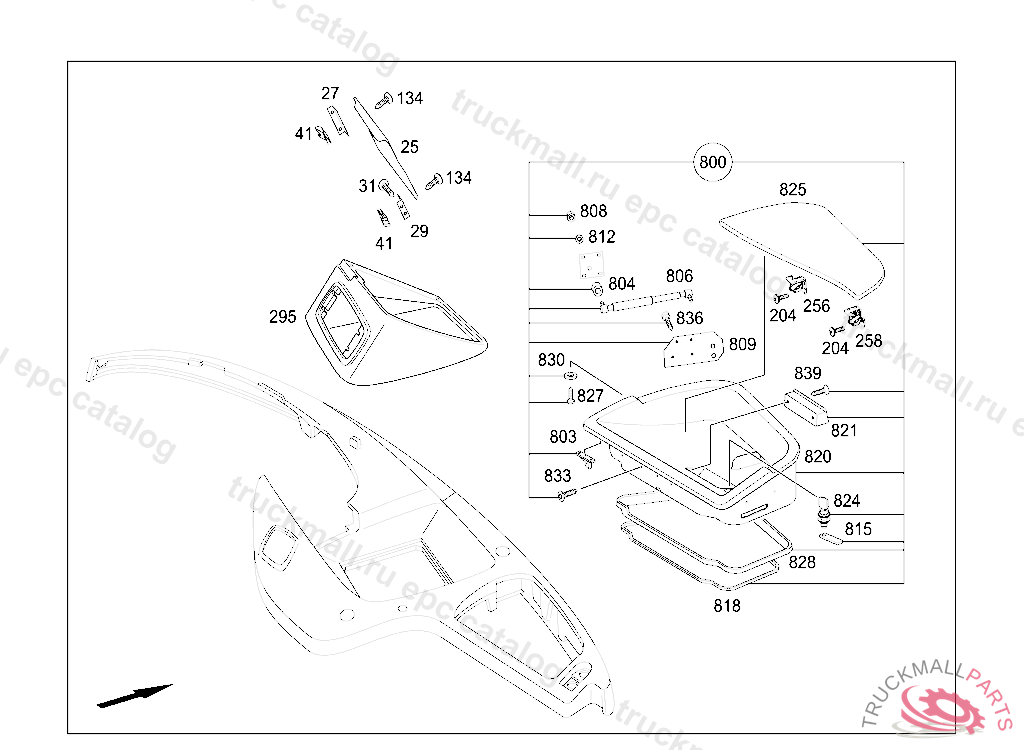

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 2

Поз.
Артикул
Описание
25
A6326890008
COVERING
27
A6326890012
ANGLE LEFT
29
A6326890112
ANGLE RIGHT
31
N000000000462
TAPPING SCREW BRACKET MOUNTING 4.8X19
41
A0039948145
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
134
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
204
N000000000450
TAPPING SCREW3.5X22
256
A0009930969
CUP HINGE LEFT
258
A0009931069
CUP HINGE RIGHT
295
A6326800652
PIGEONHOLEVDO
800
A6326800017
COVERING
803
A6296830012
FASTENER
804
A0009922103
PLAIN BEARING BUSH
806
A6299800164
GAS PRESSURE SPRING LIFTOMAT
808
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
809
A6326880112
CORNER BRACKET
812
A0029904782
THRUST WASHER
815
A6326890002
LATCH PLATE
818
A0008450198
SEAL COVER BIS 01/2002
820
A6326850039
COVER COVER OF LENGTHWISE SEAT BENCH BORE
821
A6296800158
SHELL-TYPE HANDLE
824
A6296890001
LOCK HOUSING
825
A6326850139
COVER UPPER PART
827
N000000000450
TAPPING SCREW3.5X22
828
A6326850239
COVER
830
N000125005328
WASHER COVER TO ALTERNATOR
833
N000000000477
TAPPING SCREW3,5X16MM
836
N000000000448
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
839
N000000000480
SHEET METAL SCREW. SCREW
999
N000000000464
TAPPING SCREW HANDLE TO PANELLING
999
N000000003302
TAPPING SCREW2.9X16
