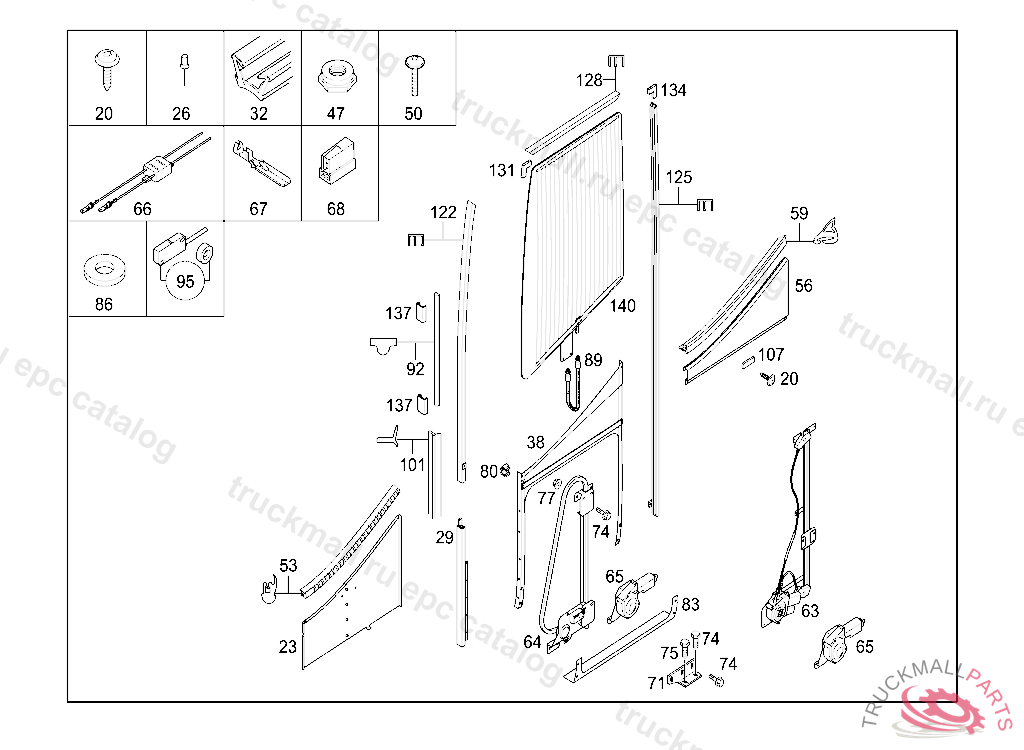

Поз.
Артикул
Описание
20
TAPPING SCREW MOUNTING PLATE 3.5X9.5
20
TAPPING SCREW RAIL
23
COVERING INSIDE
26
BLIND RIVET
29
GUIDE RAIL
32
WINDOW RUBBER RUNL4300MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
38
WEATHERSTRIP
38
SEALING FRAME
47
NUTM4
50
HEXALOBULAR BOLT. SCREW
50
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
53
SEAL INSIDE
53
SEAL INSIDE
56
COVERING OUTSIDE
56
COVERING , Replaced By: A6327220108
59
RUBBER SECTION848LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
63
WINDOW REGULATOR ELECTRIC, Replaced By: A0007251102
63
WINDOW REGULATOR ELECTRIC
64
WINDOW REGULATOR
65
ELECTRIC MOTORTO A 000 725 11 02
65
ELECTRIC MOTOR WITH TRANSMISSION TO A 628 820 00 42
66
INTERFERENCE SUPPRESSOR
67
PLUG CONECTION
68
PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
71
RETAINING RAIL
74
HEXAGON HEAD BOLT
75
SCREW BRACKET AND CLAMP M6X20
77
NUT , Replaced By: N913023006001
80
CAPTIVE NUTM6
83
SEALING RAIL BOTTOM
83
SEALING RAIL BOTTOM
86
WASHER BRACKET TO BATTERY CASE BRACKET
89
HOSE
92
RUBBER STRIPL5200MM
95
SOLENOID SWITCH
101
PROFILE SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
107
SPACER35X12X4MM
122
GUIDE RAIL A-PILLAR,TOP
125
GUIDE RAIL B-PILLAR
125
GUIDE RAIL B-PILLAR
128
WINDOW GUIDE TOP
131
ANGLE
131
ANGLE A-PILLAR, Replaced By: A6327250012
134
ANGLE
137
GUIDE JAW , Replaced By: A4107250029
140
GLASS PANE
