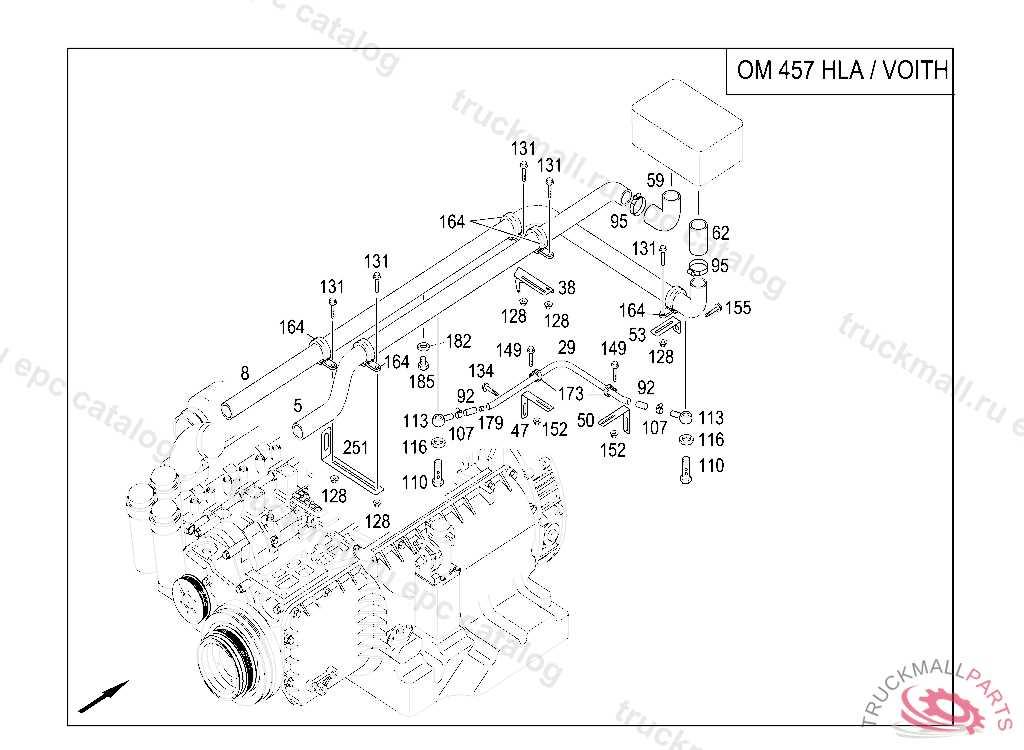

Поз.
Артикул
Описание
5
LINE FEED LINE ZF
5
LINE FEED LINE VOITH
8
LINE RETURN LINE ZF
8
LINE RETURN LINE VOITH
29
COOLING WATER PIPEVOITH
29
COOLING WATER PIPEZF
38
BRACKET
38
BRACKET
47
BRACKETZF
47
BRACKETVOITH
50
BRACKETVOITH
53
BRACKET
59
MOLDED PIECE ARC REDUCED 90 DEGREES 60/50MM
62
MOLDED HOSE NARROWED STRAIGHT SURFACE 60/50MM
92
HOSE10X19X100MM
92
HOSE10X19X100MM, Replaced By: N000000004922
95
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
107
CLAMP HOSE TO FITTING 11 - 20 MM
110
HOLLOW SCREW
113
BANJO UNION10/14
116
SEAL RINGTO 000 553 03 05,000 553 18 05,
116
SEAL RING INJECTION PUMP
128
NUT , Replaced By: N913023010002
131
SCREWM 10X20
134
SCREW , Replaced By: N910143008000
149
SCREW BRACKET AND CLAMP M6X20
152
NUT , Replaced By: N913023006001
155
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M16X1.5X30
155
SCREW FRONT SPRINGS TO FRONT AXLE
164
CLAMP60/25MM, Replaced By: N000000006126
164
CLAMP60/25RSGU
173
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
173
CLAMP , Replaced By: N916016010211
179
SLEEVE
182
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
185
SCREW PLUGROCKINGER,TYP 59 U150
251
BRACKET
