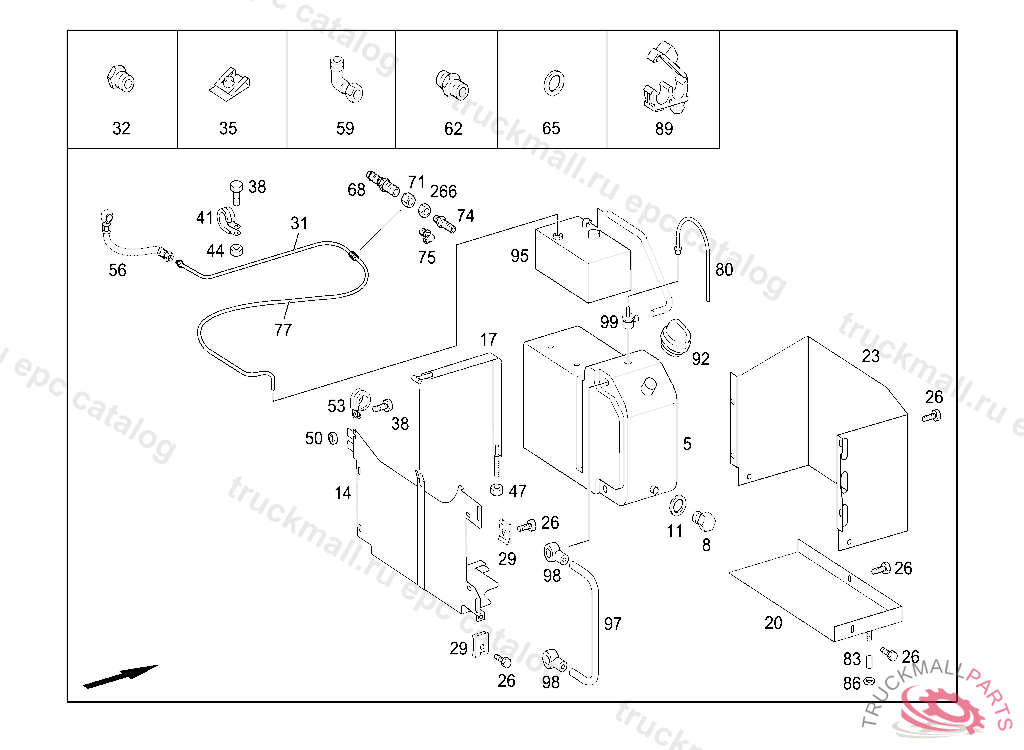

Поз.
Артикул
Описание
5
OIL TANK ENGINE OIL AUTOMATIC REPLENISHMENT " GROENEVELD "
8
SCREW PLUG
8
SCREW PLUG, FILLING
11
SEAL RING SOLENOID VALVE A 18X24
14
SUPPORT OIL TANK
17
STRAP OIL TANK
17
STRAP OIL TANK,100688
20
SUPPORT
23
REINFORCEMENT
26
SCREW , Replaced By: N910143008000
29
NUTM8
31
OIL LINE FROM PRIMER CAPSULE TO ENGINE
32
FITTINGD10MM
35
LOCK NUT. SPRING NUT MOUNTING PARTS
38
SCREW BRACKET AND CLAMP M6X20
41
CLAMP10/15
41
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
41
CLAMP , Replaced By: N916016010211
44
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
47
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
NUT , Replaced By: N913023006001
53
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
53
CLAMP
53
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
56
FUEL HOSE
59
FITTING ADJUSTABLE 60 DEGREES, FROM IDENT NO. 081149 ALSO INSTALLED ON 079775
62
FITTINGM18X1.5
62
FITTING
65
SEAL RING VALVE TO VALVE,K 025179
68
FITTING RETURN
71
NUT
71
NUT. UNION NUT RETURN
74
BULKHEAD FITTING ,100687
75
FITTING
77
HOSETO 346 500 60 03, ORDER BY THE METER
80
HOSE FROM 3/2-WAY VALVE TO SHIFTING CYLINDER, ORDER BY THE METER
83
OIL LINE7,3X100MM
86
GROMMET
89
BRACKET
92
CAP OIL REFILLING
95
CONTROL UNIT AT OIL TANK
97
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
98
ELBOW FITTING
99
ELBOW FITTING
266
NUTM16X1.5 RAUFOSS
