Mercedes A6297500036 - ZB GASFEDER 330 N

S 416 UL 633.102

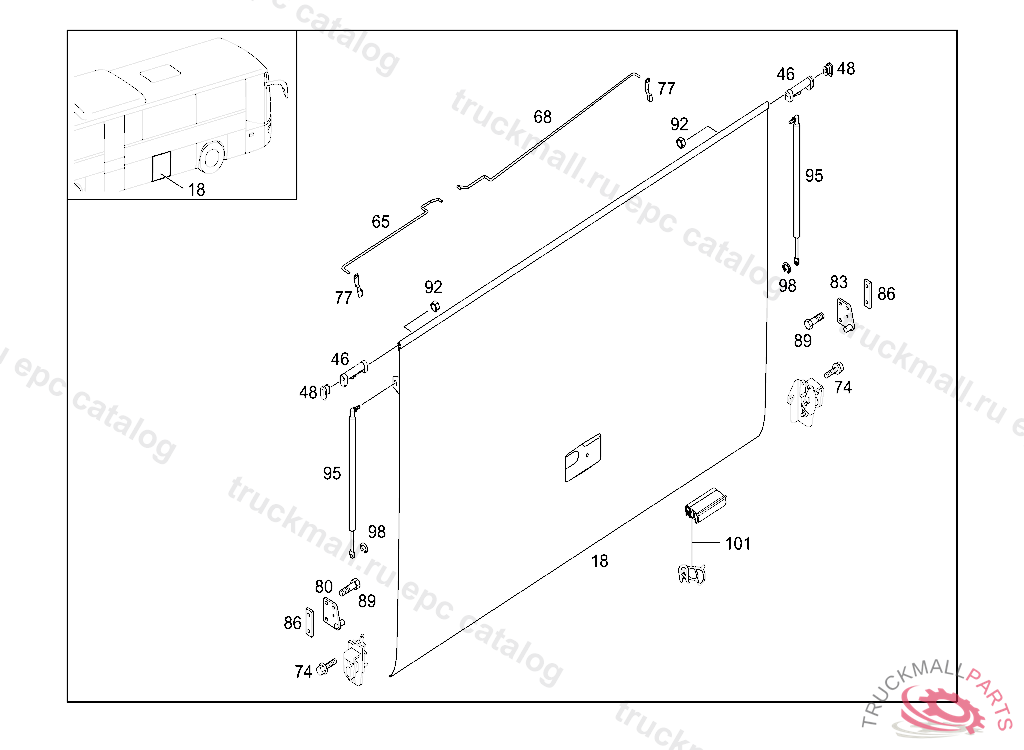

75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 13

Поз.
Артикул
Описание
46
A0009927003
BUSHING
48
A0009983823
PROTECTIVE CAP
65
A6337550288
OPERATING ROD LEFT L894MM
65
A6337550088
ROD LEFT L655MM
65
A6327550488
RODL822 MM
65
A6337550888
ROD LEFT L184MM
65
A6327550288
ROD LEFT L944,5MM
65
A6297540219
ROD. STRUTL437 MM
65
A6297541019
ROD. STRUTL175 MM
68
A6327550588
RODL883 MM
68
A6297540319
ROD. STRUTL498 MM
68
A6297541119
ROD. STRUTL246 MM
68
A6337550188
ROD RIGHT L707,5MM
68
A6337550388
ROD RIGHT L948.5MM
68
A6337550988
ROD RIGHT L234MM
68
A6327550388
ROD RIGHT L997MM
74
N910105006002
HEXAGON HEAD BOLT
77
A0007580042
LOCK
80
A0007580003
STRIKER
83
A0007580103
STRIKER
86
A6297550111
PLATE
89
N910105008041
SCREW , Replaced By: N910143008000
92
N913012008001
NUT HINGE LEVER TO MOUNTING
95
A6339800664
GAS SPRING630N
95
A0029807064
SPRING PNEUMATIC SPRING 250N
95
A6297500036
SPRING PNEUMATIC SPRING 330N
95
A6297500936
SPRING PNEUMATIC SPRING 520 N
98
N000471008000
LOCK RING
101
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
