Mercedes A6277111234 - LU VERBINDUNG/DISTAN

S 416 UL 633.102

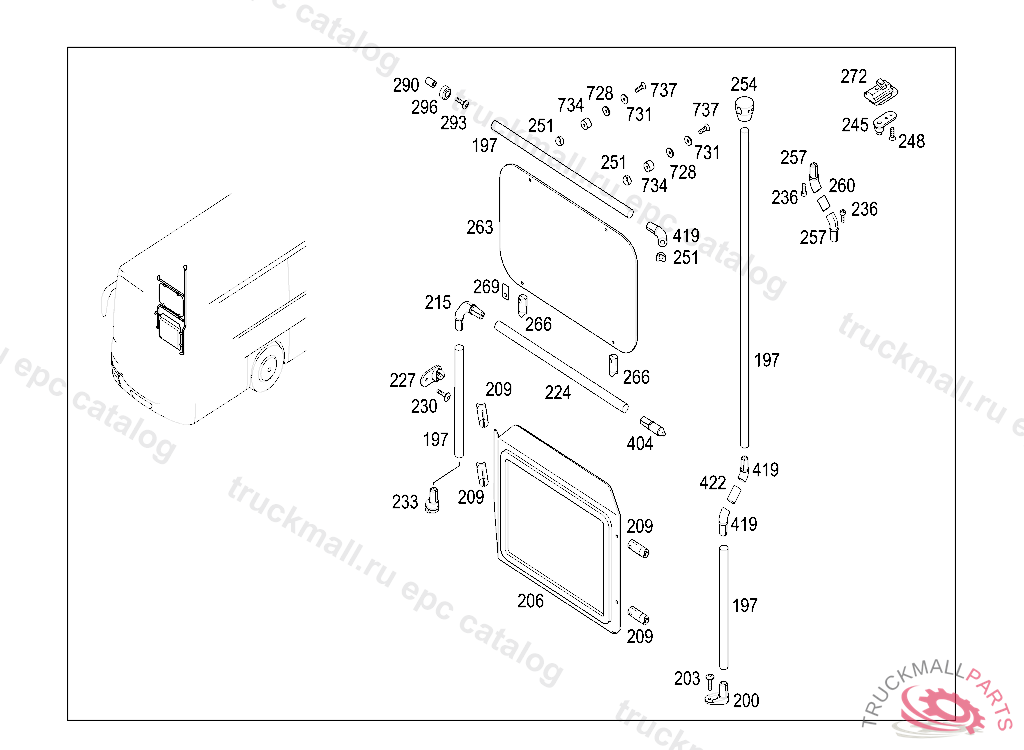

71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS IL. 4

Поз.
Артикул
Описание
197
A6338100250
GRAB RAIL34X2, ORDER BY THE METER STATE COLOR NUMBER WHEN ORDERING TO BE ADAPTED DURING ASSEMBLY
197
A6278156959
TUBE EVO GRAY 3,34X2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY STATE COLOR NUMBER WHEN ORDERING
197
A0008159651
GRIP RAIL EVO GRAY 1,34X2, ORDER BY THE METER STATE COLOR NUMBER WHEN ORDERING TO BE ADAPTED DURING ASSEMBLY
197
A0008150059
TUBERAL1023, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY STATE COLOR NUMBER WHEN ORDERING
200
A6277106032
CONNECTION
203
A0009901729
SCREWM8X40
206
A6337110401
PARTITION PANEL
206
A6337110501
PARTITION PANEL
206
A6327110001
PARTITION PANEL
206
A6337110801
PARTITION PANEL
209
A6277111534
CONNECTION
215
A6277104432
CONNECTION
224
A6279852736
METAL SECTION35X2,5
227
A6277105632
CONNECTION
230
A0009902029
SCREW W SOCKET DRIVEM6X25 T30
233
A6277100532
CONNECTION
236
A0039903712
SCREWM8X16
245
A6277100932
CONNECTION EVO GRAY 3
248
A0029900520
SCREWM8X16
248
A0009901129
SCREWM 8X22, T40
251
A6277118834
CONNECTION
251
A6277111234
SPACER ELEMENT
254
A6277109132
CONNECTION
257
A6277103732
CONNECTIONGR45
260
A0009972876
CONNECTION
260
A0009972776
CONNECTION
263
A6297110010
GLASS PANE
266
A6277111534
CONNECTION
269
A6277110097
PAD
272
A6277106332
CONNECTION
290
A6277110834
CONNECTION
293
A0009901129
SCREWM 8X22, T40
296
A6277110634
CONNECTION
404
A6277102132
CONNECTION
419
A6277103732
CONNECTIONGR45
422
A0009972876
CONNECTION
999
A3093260353
SPACER TUBE
