Главная
›
Mercedes
›
BUS
›
S 417 UL
›
633.103
›
75 OUTSIDE FLAPS
›

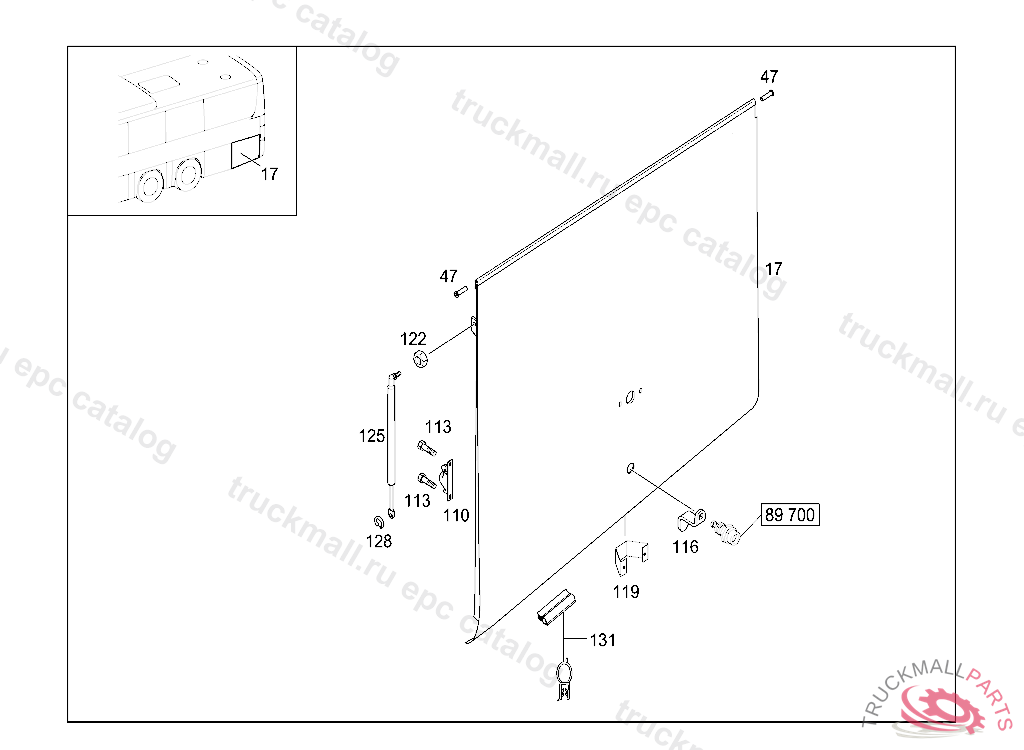

420 LUGGAGE COMPARTMENT FLAP IL. 3
Mercedes A6297500036 - ZB GASFEDER 330 N
S 417 UL 633.103
75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 3
Поз.
Артикул
Описание
17
A6327503504
FLAP ,WKK 632121 13 102185
17
A6327507504
FLAPL1219MM
17
A6337503795
HINGED DOOR
47
A0009926205
BUSHING
110
A0007501250
LOCK
113
N910105005003
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
116
A0019880460
LATCH PLATE65X16X37 MM
119
A6327541021
COVERING HEAT SHIELDS
122
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
125
A6297500036
SPRING PNEUMATIC SPRING 330N
128
N000471008000
LOCK RING
131
A0007570174
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0059976190
LOOM TIE
