Главная
›
Mercedes
›
BUS
›
S 417 UL
›
633.103
›

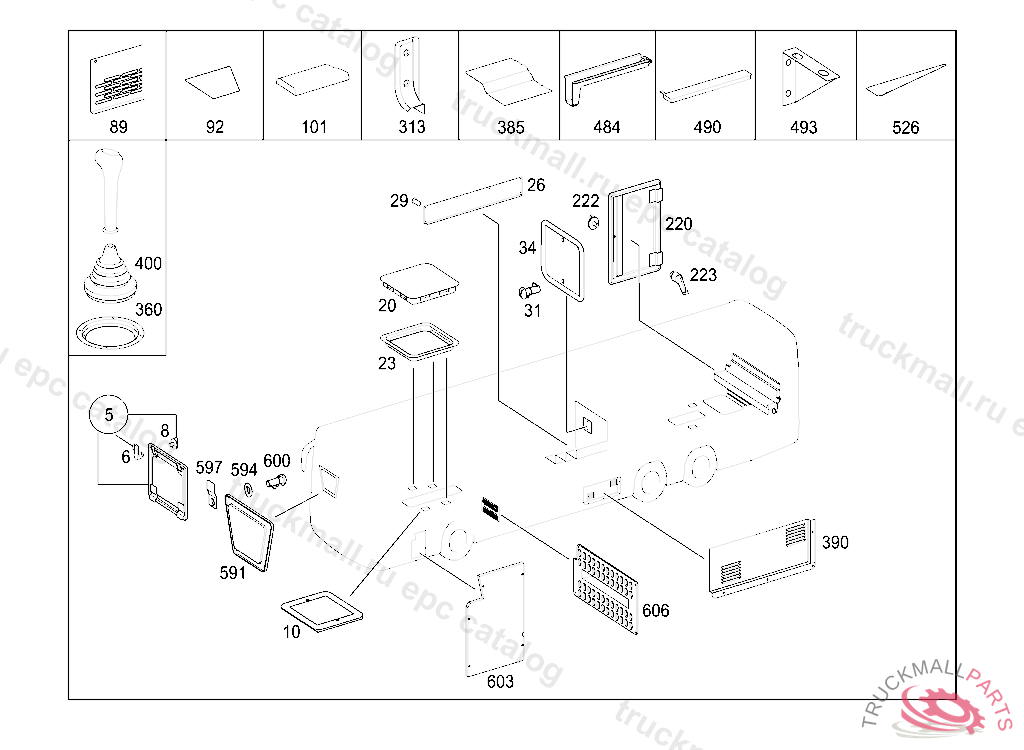

68 PANELLING AND LINING
›
270 FLOORING,FLOOR FLAPS IL. 5
Mercedes A0006830006 - MONTAGERAHMEN
S 417 UL 633.103
68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5
Поз.
Артикул
Описание
5
A6296801607
CLOSING COVER
6
A0009980695
ROTARY CATCH
8
A0009980595
ROTARY CATCH
10
A0006800907
COVERING
20
A0006800323
SERVICING COVER
23
A0006830006
FRAME
26
A6336860414
BRACKET DISABLED PERSON LIFT
29
A0009880527
GROMMET
31
A0006830212
FASTENER SUPERFIX
34
A6296830110
COVER
34
A0006840018
COVER ABS
89
Q325712241101
ALUMINUM SECTION
92
Q325711212601
COVER PLATE510X340MM
101
Q2332331242
ALUMINUM SECTION
220
A6336800507
COVERING FOR BATTERY
222
A0009980595
ROTARY CATCH
223
A0009980695
ROTARY CATCH
313
A6336840318
COVERING
360
Q179713115101
RING
400
A6272680097
BOOT SHIFT LEVER TO CASE
484
Q325714310001
COVERING
490
Q325714341601
PACKING SHEET RIGHT REAR
490
Q325714341501
PACKING SHEET LEFT REAR
493
Q327711015101
CONSOLE
526
Q329714311101
PACKING SHEET LEFT FRONT
526
Q329714311201
PACKING SHEET RIGHT FRONT
591
A6296860010
PANELLING PANE WIPER
594
A0039908740
WASHER6 MM
594
A0009911195
FASTENING CLIP
597
A0019886142
FASTENER
600
A0009915807
PIVOT PIN
603
A6326820016
COVERING ELECTRICAL COMPARTMENT
606
A6336840118
COVERING AT CROSS MEMBER 4, Replaced By: A6336840418
606
A6336840418
COVER AT CROSS MEMBER 4
606
Q325713111107
VENTILATION SCREEN LUGGAGE COMPARTMENT
