Mercedes A6296900320 - ZB SCHIENE RECHTS

S 419 UL 633.104

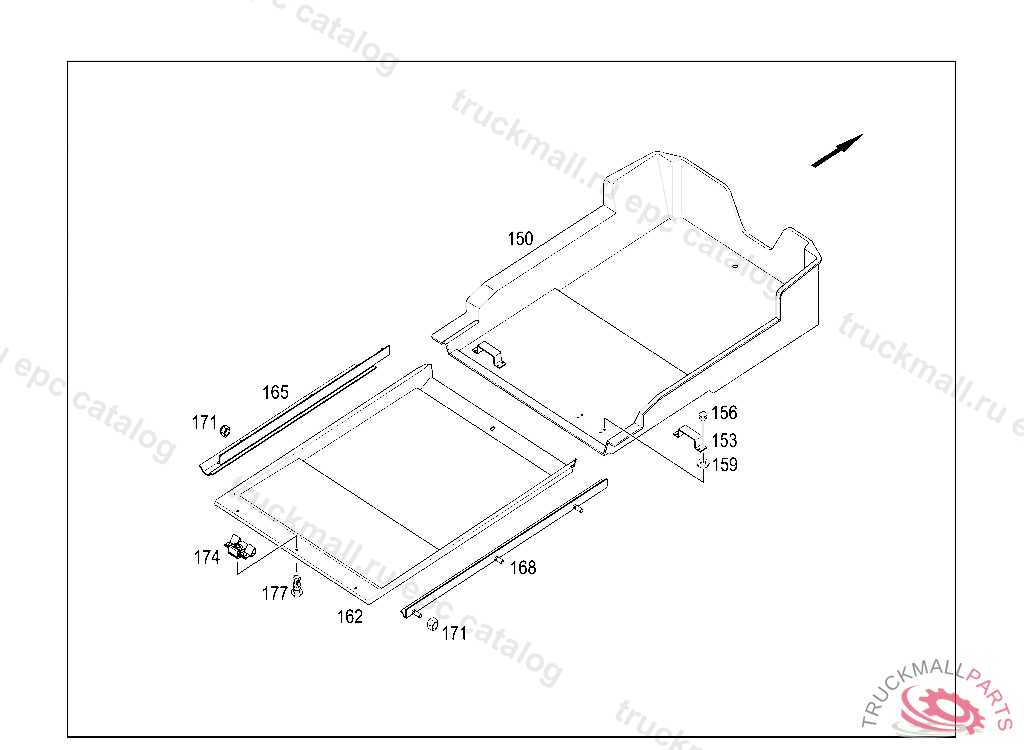

68 PANELLING AND LINING - 440 INSULATION IL. 9

Поз.
Артикул
Описание
150
A6296900007
COVERING FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
153
A6296930014
BRACKET FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
156
A0039909397
BLIND RIVET FRONT 4,8X12,70MM
159
A0069900140
WASHER FRONT
162
A6296930517
COVERING ENGINE
165
A6296900220
RAIL LEFT
168
A6296900320
RAIL RIGHT
168
A6296122170
RAIL RIGHT
171
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
174
A0109886478
CLIP , Replaced By: A0006940058
174
A0006940058
CLAMP
177
A0009845836
PIVOT9X15MM
999
A0016821644
INSULATION , TO BE ADAPTED DURING ASSEMBLY
