Mercedes N304032008006 - ГАЙКА М8

S 419 UL 633.104

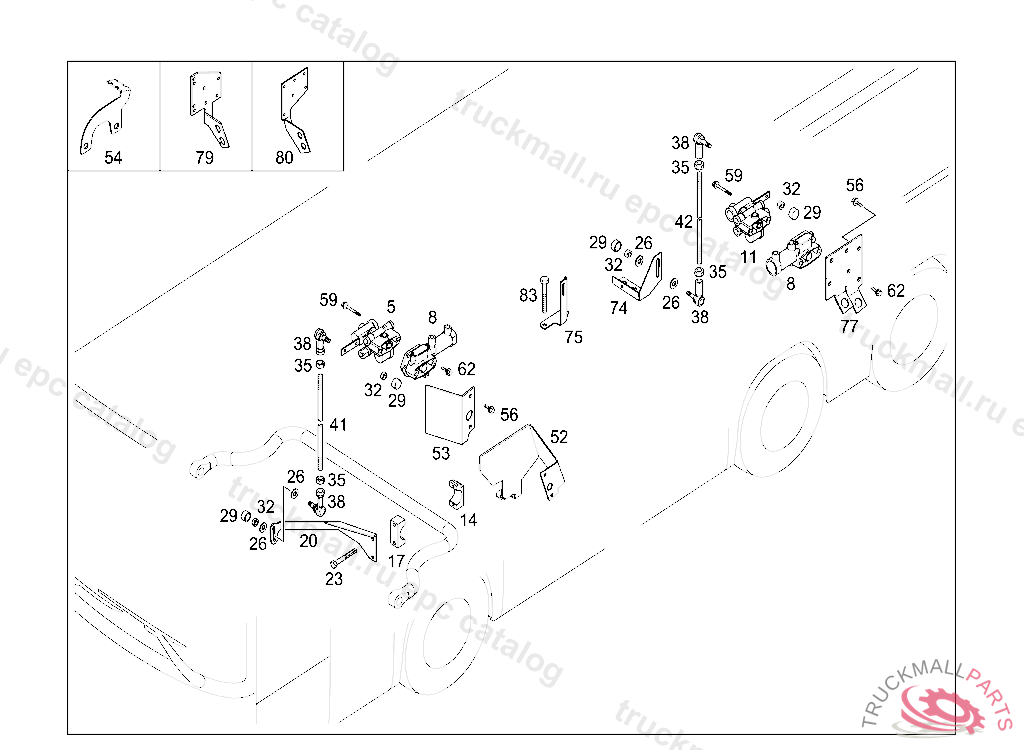

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 1

Поз.
Артикул
Описание
5
A0003279225
VALVE FRONT AXLE
8
A0003277625
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
11
A0003282425
VALVE DRIVING AXLE LEFT
11
A0003282525
VALVE DRIVING AXLE RIGHT
14
A6293270121
COVER
17
A6293270021
COVER
20
A6293230015
LEVER
23
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
26
N000125008445
WASHER PUMP TO CONSOLE
29
N913018013202
PROTECTION CAP MOUNTING TO BODY
32
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
32
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
N304032008006
NUT
38
A0003280063
JOINTA13, Replaced By: A0019962545
38
A0019962545
ANGLE JOINTA13
41
A6293280634
RODM8/160LG
41
A6293280234
RODM8/515LG
42
A6293280534
RODM8/140LG
52
A0003270286
PROTECTIVE PLATE
53
A0003270086
PROTECTIVE PLATE
54
A0003270740
BRACKET
56
N910105008041
SCREW , Replaced By: N910143008000
59
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
59
N910143008019
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
62
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
74
A6293280640
BRACKET LEFT
74
A6293280740
BRACKET RIGHT
75
A6323280340
BRACKET RIGHT
75
A6323280240
BRACKET LEFT
77
A6293280840
BRACKET RIGHT
77
A6293280540
BRACKET LEFT
80
A6323280140
BRACKET RIGHT
80
A6323280040
BRACKET LEFT
83
N000000005518
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
