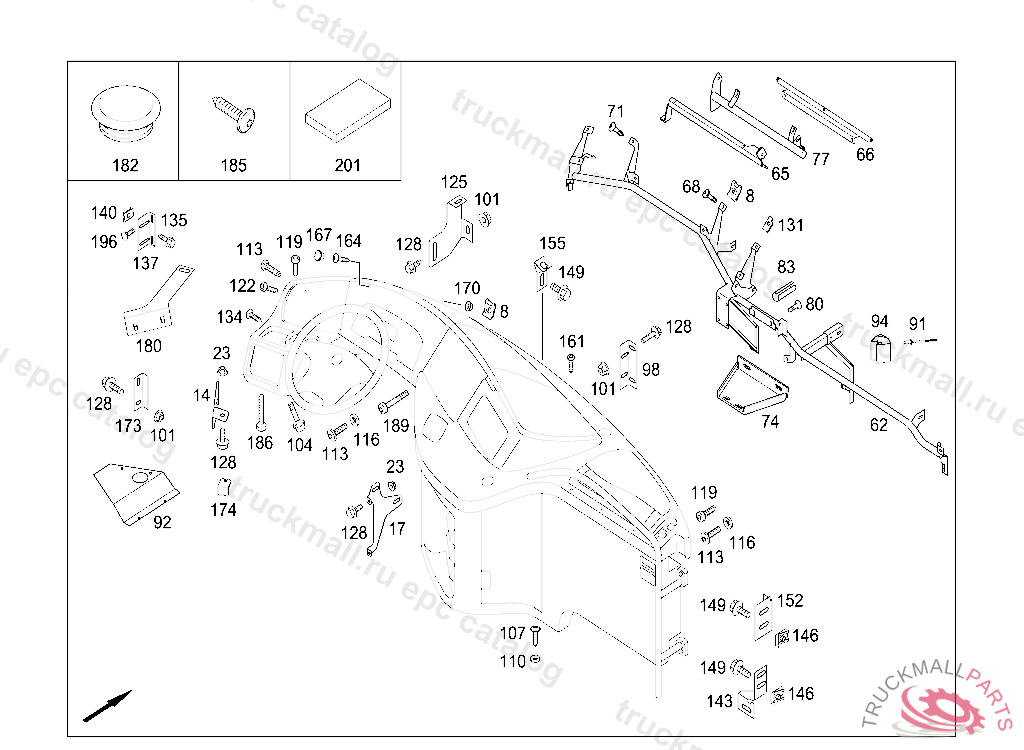

Поз.
Артикул
Описание
8
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
8
LOCK NUT. SPRING NUT STEP TO ENTRANCE
8
SPRING NUT. LOCK COVER ATTACHMENT
14
BRACKET LEFT
17
MOUNTING BRACKET RIGHT
17
BRACKET RIGHT
23
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
23
NUT , Replaced By: N913023006001
62
BEAM SUPPORT STRUCTURE
62
SUPPORT SUPPORT STRUCTURE
65
BRACKET SWITCH PANEL WITHOUT PAY MACHINE
66
BRACKET
68
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
71
TAPPING SCREW HANDLE TO PANELLING
74
STAY
77
BRACKET SWITCH PANEL WITH PAY MACHINE
80
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X20
83
ROLL PIN
91
BLIND RIVET MOUNTING OF CARRIER 4X8
92
PANELING CENTER CONSOLE,LEFT
94
SPRING BRACKET MOUNTING
98
ATTACHMENT ANGLE BRACKET RIGHT BULKHEAD
101
NUT , Replaced By: N913023006001
104
HEXAGON HEAD BOLT SWITCH TO CAB FLOOR M 5X35
107
TAPPING SCREW TAKE-UP DEVICE M8 X 25
110
WASHER
113
SCREW W SOCKET DRIVEM6X25 T30
116
WASHER , Replaced By: A6739901140
116
WASHER BRACKET TO CONSOLE
119
HEX. SKT. CAP BOLTM5X16MM
122
SCREWM5X12
125
REST FRONT
128
SCREW , Replaced By: N914146006102
128
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
131
PAD INSTRUMENT SUPPORT
134
TAPPING SCREW CONTROL UNIT TO FIRE WALL
135
SCREW , Replaced By: N910143006001
137
ANGLE ON LEFT A-PILLAR
140
SPRING NUTM6
143
ATTACHMENT ANGLE BRACKET
146
SPRING-THREAD NUT PROTECTIVE PLATE
149
SCREW , Replaced By: N910143008000
152
ATTACHMENT ANGLE BRACKET
155
BRACKET FOR GRIP HANDLE
161
TAPPING SCREW BRACKET TO PLATE 4.8X38
164
TAPPING SCREW ATTACHMENT GRAB HANDLE
167
COVER CAPD12,7MM
170
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
173
BRACKET REST
174
BRACKET
180
STAY PANELLING ON THE LEFT
182
LOCKING CAP
185
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
185
TAPPING SCREW BRACKET TO SUPPORT
186
SCREWM 6X35
189
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
189
SCREWM5X16
196
SCREW REINFORCEMENT TO FENDER,900024
201
FELT STRIP SELF-ADHESIVE 15X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
TAPPING SCREW2.9X16
