Mercedes A6293230900 - LU STOSSDAEMPFER

S 415 H 633.121

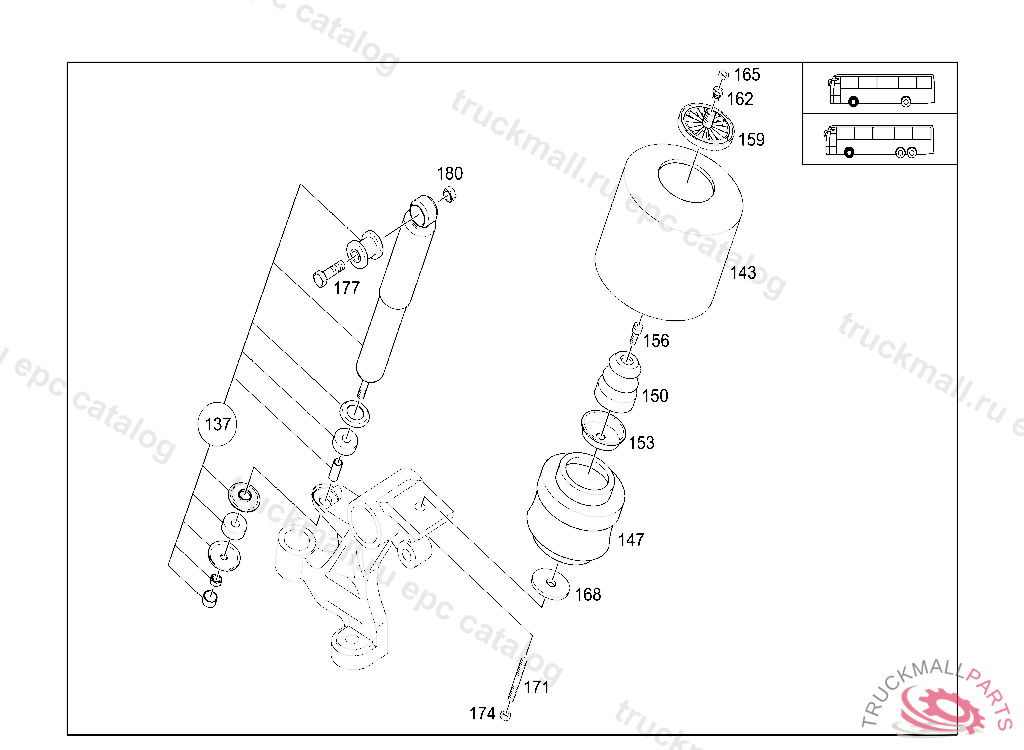

32 SPRINGS AND SUSPENSION - 545 PNEUMATIC SUSPENSION & STABILIZATION ON FRONT AXLE IL. 2

Поз.
Артикул
Описание
137
A6293231800
SHOCK ABSORBER
137
A6293230900
SHOCK ABSORBER COMPLETE NEUV 45 X 210 HA, Replaced By: A6293231800
143
A6283230092
BELLOWS. BOOT
147
A6283200018
AIR BELLOW PISTON123 MM
150
A6283210006
HELPER SPRINGHOEHE 80, Replaced By: A6283210007
153
A6283220087
CENTERING DISCHOEHE 23
156
A0003210071
SCREW
159
A6283200535
PLATE
162
A0009974734
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
165
A0029909550
NUTM24X1.5-14H
168
A6293280135
PLATED 80X15
171
N000000005423
STUD BOLT RETARDER M16X1.5X70
174
N000000005462
NUT. SCREW ADJUSTER STOP
177
N000000005576
HEXAGON HEAD BOLT. SCREWM 20X1,5X110
180
N000000005740
NUT SHOCK ABSORBER TO BRACKET M20X1.5
