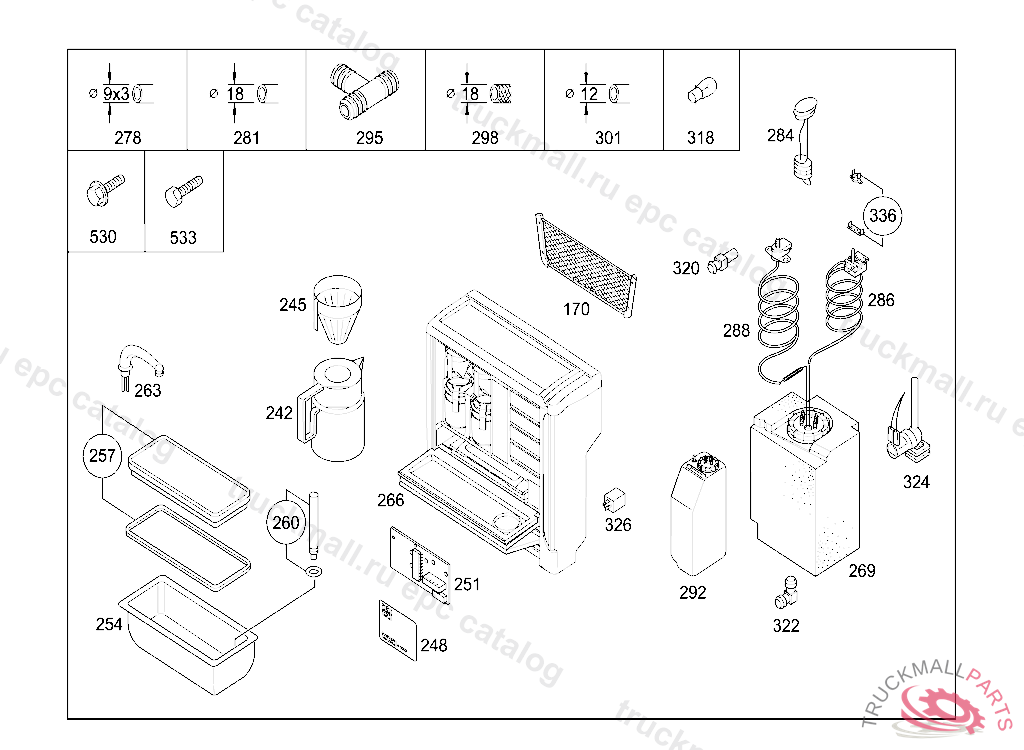

Поз.
Артикул
Описание
170
LUGGAGE NET
170
ROOF RACK
242
THERMOS BOTTLE
245
FILTER BOWL
248
OPERATING UNIT WITH DISPLAY
251
CONTROL UNIT
254
ELEKTROKOCHER SAUSAGE COOKER 8,5 LTR
257
COVER FOR COOKER WITH GASKET
260
PLUG
263
WATER FAUCET
266
FLAPZB KOMPLETT
269
BOILERVST
278
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
281
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
284
HEATING ELEMENT
286
SWITCH OVERHEATING
286
SWITCH THERMOSTAT
288
SWITCH
292
RESERVOIR
295
DISTRIBUTOR RELAY VALVE,CONNECTION: "10"
298
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
301
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
318
BULB
320
VALVE (CHECK VALVE)
322
PIPE SOCKET
324
SOLENOID VALVE
326
RELAY
326
RELAY24V/50A
326
RELAY24V / 40A, Replaced By: A0009823923
326
RELAY24V/50A, Replaced By: A0009823723
336
SWITCH
530
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
533
SCREW PIPE CLAMP
999
COVERING ASHTRAY
999
CABLE HARNESS
999
CLUTCH
999
BOILER
999
CONTINUOUS-FLOW HEATER
999
CONTINUOUS-FLOW HEATER
999
BOILERVST
999
BOILER
999
PLATE
999
FITTING ELBOW FITTING
999
HINGE
999
TAKE-UP DEVICE
999
COVERING
999
CUP HOLDER
999
CUP DISPENSER
999
VALVE
999
BRACKET LEFT
999
CONTAINER
999
CONTAINER WATER RESERVOIR
999
CLIP
999
WASHER
999
THROTTLE
999
FITTING
999
INTERIOR LAMP
999
CONNECTOR
999
CABLE HARNESS
999
CONTROL UNIT CENTRAL LUBRICATION
999
CONTROL UNIT
999
ADHESIVE THREAD LOCK 50G
999
SWITCH
999
KITCHENETTE
999
KITCHENETTE
