Mercedes A6337550188 - BETAETIGUNGSSTANGE R

S 416 H 633.122

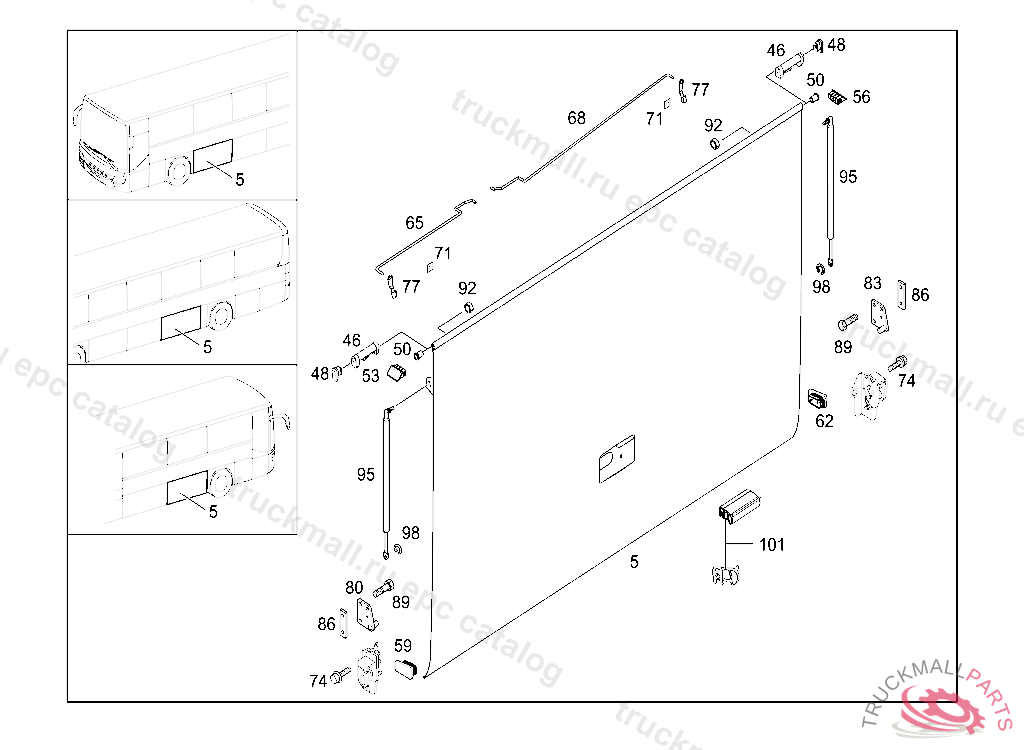

75 OUTSIDE FLAPS - 420 LUGGAGE COMPARTMENT FLAP IL. 7

Поз.
Артикул
Описание
5
A6337500195
HINGED DOOR
46
A0009927003
BUSHING
48
A0009983823
PROTECTIVE CAP
65
A6297540019
STRUTL646 MM
65
A6297541619
STRUTL686 MM
65
A6297546119
STRUTL372 MM
65
A6297540219
ROD. STRUTL437 MM
65
A6337550088
ROD LEFT L655MM
65
A6327550488
RODL822 MM
68
A6327541719
ROD RIGHT L787MM
68
A6297540319
ROD. STRUTL498 MM
68
A6327550588
RODL883 MM
68
A6297540119
STRUTL707 MM
68
A6337550188
ROD RIGHT L707,5MM
68
A6297546219
STRUTL423 MM
71
A0009940145
LOCK
74
N910105006002
HEXAGON HEAD BOLT
77
A0007580042
LOCK
80
A0007580003
STRIKER
83
A0007580103
STRIKER
86
A6297550111
PLATE
89
N910105008041
SCREW , Replaced By: N910143008000
92
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
95
A0029807064
SPRING PNEUMATIC SPRING 250N
95
A6297500036
SPRING PNEUMATIC SPRING 330N
98
N000471008000
LOCK RING
101
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
