Mercedes A0039909397 - Blindniet

S 416 H 633.122

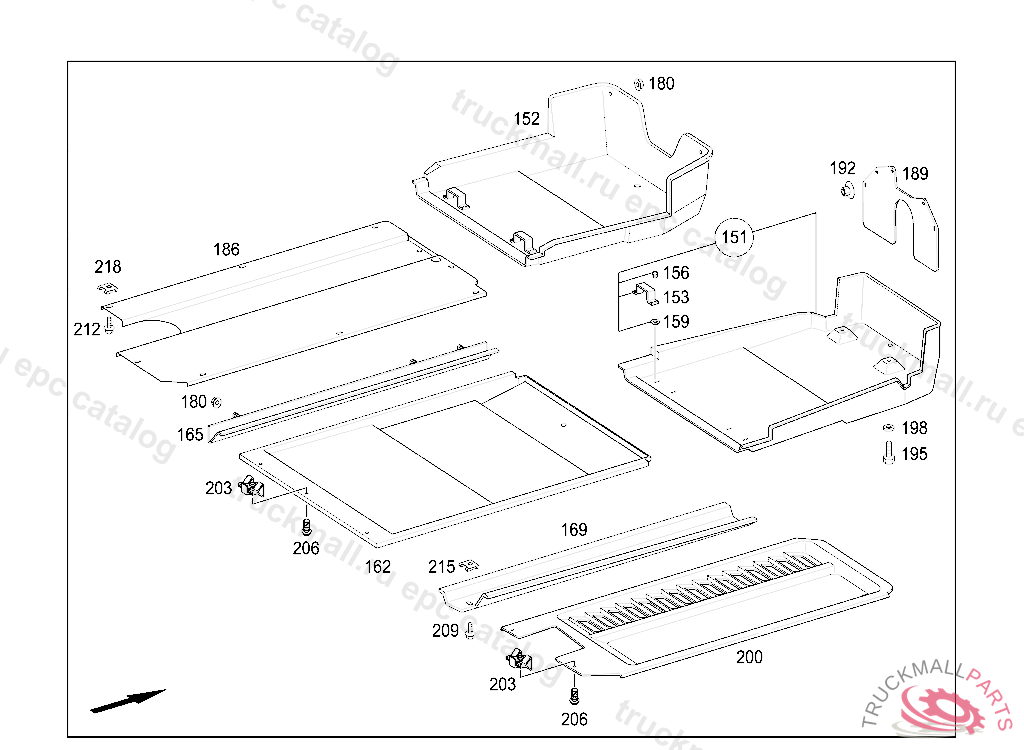

68 PANELLING AND LINING - 440 INSULATION IL. 13

Поз.
Артикул
Описание
152
A6296900007
COVERING FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
153
A6296930014
BRACKET FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
156
A0039909397
BLIND RIVET FRONT 4,8X12,70MM
159
A0069900140
WASHER FRONT
162
A6296930517
COVERING ENGINE
165
A6296900220
RAIL LEFT
169
A6296122170
RAIL RIGHT
180
N913023008003
NUT HORN TO BRACKET M8
186
A6336930017
COVERING
200
A6296930617
COVERING RADIATOR COVERING
203
A0006940058
CLAMP
206
A0009845836
PIVOT9X15MM
209
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
212
N910105008041
SCREW , Replaced By: N910143008000
215
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
218
A0029941945
LOCK
