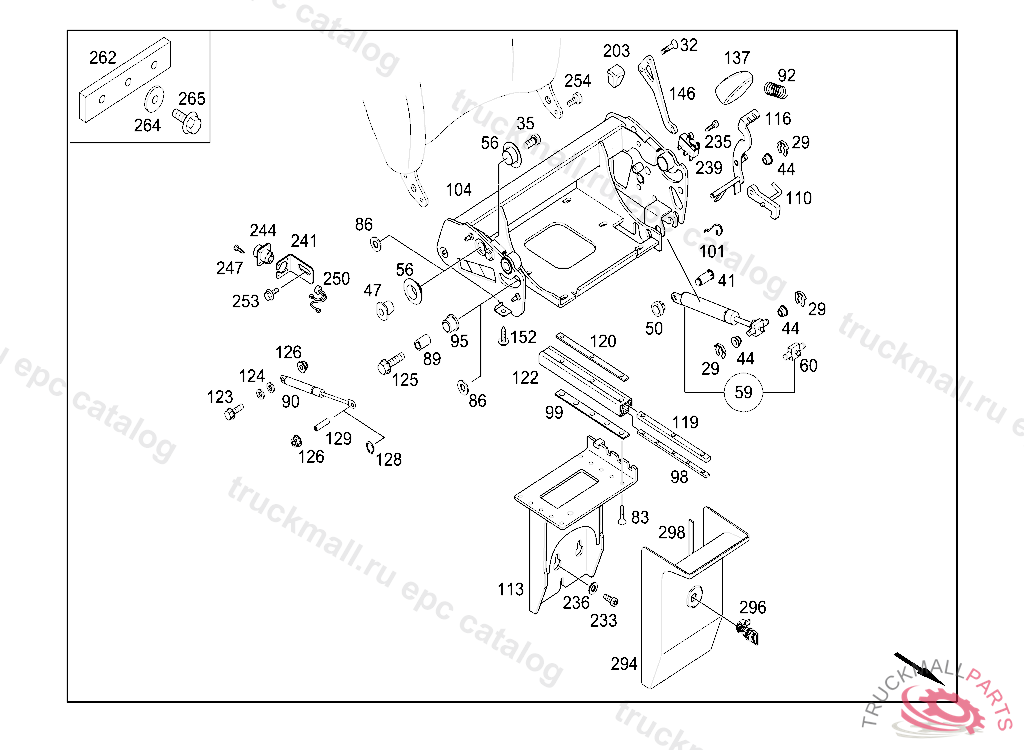

Mercedes A6329100004 - ZB SITZGESTELL
S 416 H 633.122
91 FRONT SEATS - 060 CO-DRIVER'S SEAT IL. 3
Поз.
Артикул
Описание
29
A0009911725
WASHER
32
A0019908620
SCREW
35
A0039903712
SCREWM8X16
41
A6299500015
PIN
44
A6299590017
BUSHING FRONT
47
A6299590115
PIN SHORT 165MM
50
A6299590117
BUSHING REAR
56
A6299590917
BUSHING OUTSIDE
56
A6299590817
BUSHING INSIDE
59
A6299700064
GAS SPRING. STAY DIA., 22MM
60
A0009590120
SUPPORT
83
A0019908120
SCREW W HEXAGON SOCKETM 8 X 16
89
A6299920801
BUSH WITHOUT CHAMFER
89
A6299110017
BUSHING
90
A0009115434
GAS SPRING
92
A6299110034
SPRING TENSION SPRING
95
A0009929903
BUSHING
95
A6299410117
BUSHING
98
A6299420275
LEDGE150MM
99
A6329110197
UNDERLAYER
101
A6299590264
SPRING LEFT
104
A6329100004
SEAT FRAMEWORK , Replaced By: A6329100304
104
A6329100304
SEAT FRAME
110
A6329100061
DETENT
113
A6329100095
SUPPORT
116
A6329100271
LEVER
119
A6329110075
LEDGE
120
A6329110297
UNDERLAYER
122
A6329500095
RAIL
123
N910105006006
SCREW BRACKET AND CLAMP M6X20
124
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
125
N910106008023
HEXAGON HEAD BOLT. SCREW STAY TO APPARATUS SUPPORT
125
N000000007063
HEXAGON HEAD BOLTM8X30
126
N913023006002
NUT BRACKET TO FIRE WALL
128
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
129
N000000006799
GRUB SCREW
137
A6329100371
HANDLE
146
A6329190261
LEVER
152
N000000000529
SHEET METAL SCREW BRACKET TO FIRE WALL
203
A0009876345
LOCKING CAP
233
A0039903712
SCREWM8X16
236
N000125008445
WASHER PUMP TO CONSOLE
262
A6329110011
PLATE
264
A0049906782
WASHERM6
265
N910105010006
SCREWM 10X20
294
A6329210086
COVER
296
A0029883042
FASTENER
298
A0006820001
INSULATION2X12MM/L2000MM
