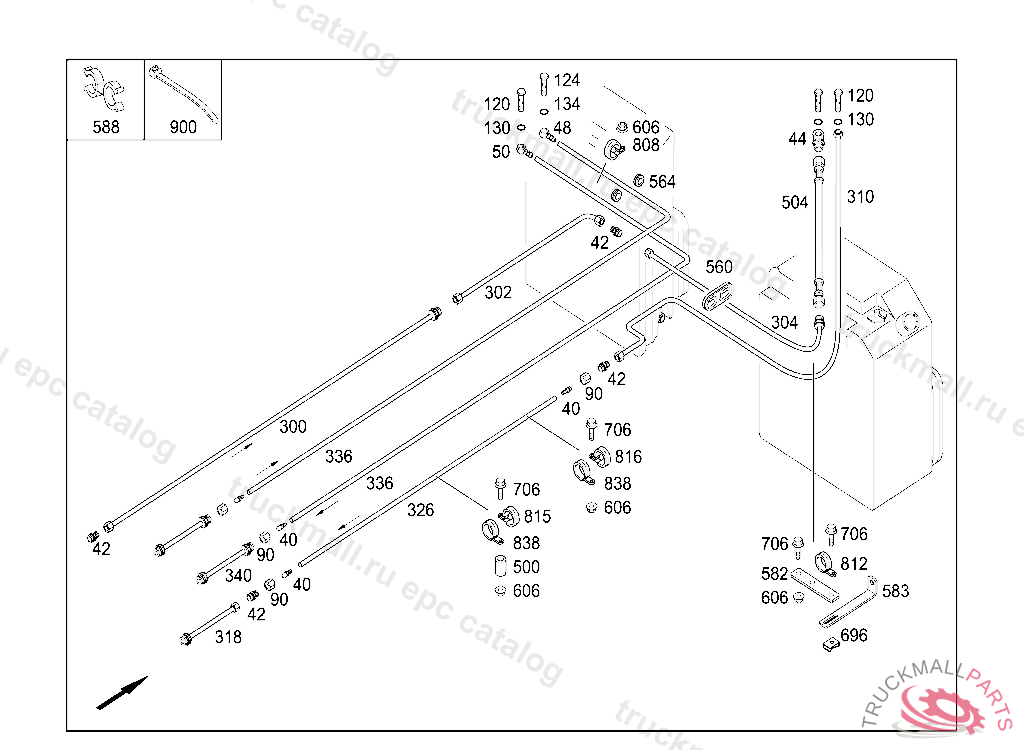

Поз.
Артикул
Описание
40
FITTING FUEL LINES
42
FITTINGM22/18X1,5MM
44
BANJO UNION10/14
44
FITTING
48
BANJO UNION , Replaced By: N915052006013
50
BANJO UNION
90
NUT
120
SCREW
124
BANJO BOLTA8
130
SEAL RINGTO 000 553 03 05,000 553 18 05,
134
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
300
SUCTION LINE
300
FUEL LINE
302
LINED151700LG
302
FUEL LINE
304
FUEL LINE
304
LINE12X755MM
310
LINE1000LG
318
LINE240MM
318
FUEL LINE
326
FUEL LINE. HOSE FUEL TANK TO RING MOUNT 12 X 15 MM, ORDER BY THE METER, Replaced By: A0004763601
326
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
336
FUEL LINE8X1, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
340
FUEL LINE
340
LINE12X115MM
500
SPACER SLEEVE
504
FUEL HOSE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2011 UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.04.2012
504
FUEL HOSE
560
GROMMET
564
GROMMET FOR CABLE HARNESS DIA.: 7-10MM
582
BRACKET
583
BRACKET
588
RANGE SPACER
606
NUT , Replaced By: N913023006001
696
LOCK. NUT , Replaced By: A0039941745
706
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
706
SCREW , Replaced By: N914146006102
706
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
706
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
706
SCREW BRACKET AND CLAMP M6X20
808
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
812
CLAMP
812
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
815
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
816
CLAMP16/15, Replaced By: A0019950842
816
MOUNTING CLAMP16/15
838
CLAMP LINE MOUNTING
900
LOOM TIE FUEL LINES TO VEHICLE FLOOR NATUR, B 14169920000415 X 04174120000427
900
CABLE TIE LINE MOUNTING 375X8.4MM
900
CABLE STRAP
