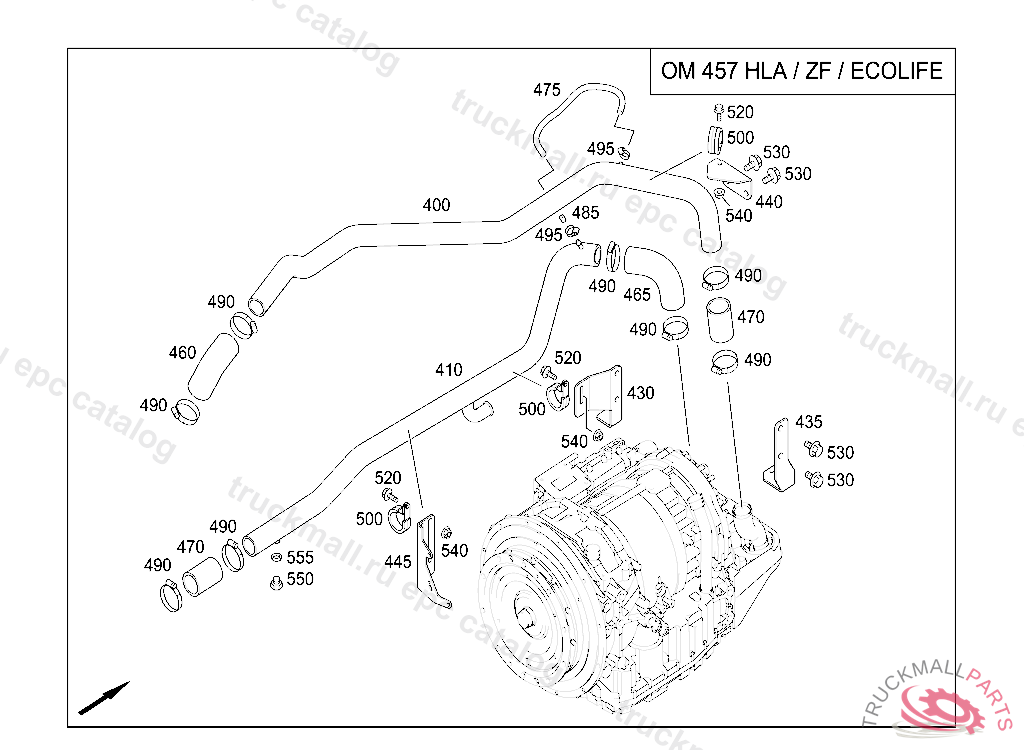

Поз.
Артикул
Описание
400
COOLANT PIPE
410
COOLANT PIPE
430
BRACKET PRESSURE CASTING
435
BRACKET
440
BRACKET
445
BRACKET
460
MOLDED HOSE 90-DEGREE ARC D60
465
MOLDED HOSE 90-DEGREE ARC D60
470
HOSE60 X 72 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
475
HOSE10X19X325MM
485
ADAPTOR SOCKETS
490
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
495
CLAMP HOSE TO FITTING 11 - 20 MM
500
CLAMP60/25RSGU
520
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
530
HEXAGON HEAD BOLTM16X1.5X25
540
NUT , Replaced By: N913023010002
550
SCREW PLUGROCKINGER,TYP 59 U150
555
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
