Mercedes N304017008021 - АВТОЗАПЧАСТЬ

S 416 H 633.122

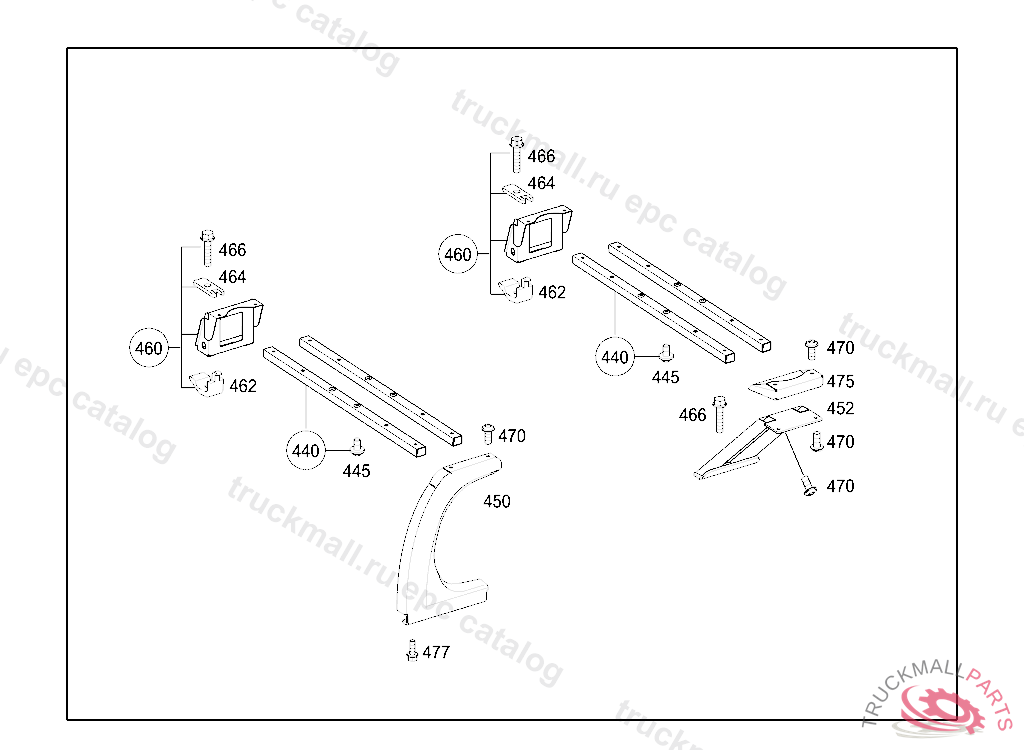

84 TRUNKS AND CASES - 150 KITCHENETTE IL. 5

Поз.
Артикул
Описание
440
A6339500230
SEAT SUBFRAMEM10
445
A0089906704
SCREWM8X12
450
A6339502918
BASE OF SEAT GANGWAY RIGHT
450
A6339502818
BASE OF SEAT GANGWAY LEFT
452
A6339503118
BASE OF SEAT GANGWAY BEFORE REAR,RIGHT
452
A6339503018
BASE OF SEAT GANGWAY BEFORE REAR,LEFT
460
A6339500033
CONSOLE
462
A6339510212
ANGLE
464
A6339510611
REINFORCEMENT PLATE
466
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
470
A0089906104
SCREW W SOCKET DRIVEM8X16, T45
475
A6339501133
CONSOLE FORE-REAR COMPARTMENT
477
N304017008021
SCREW PIPE CLAMP
