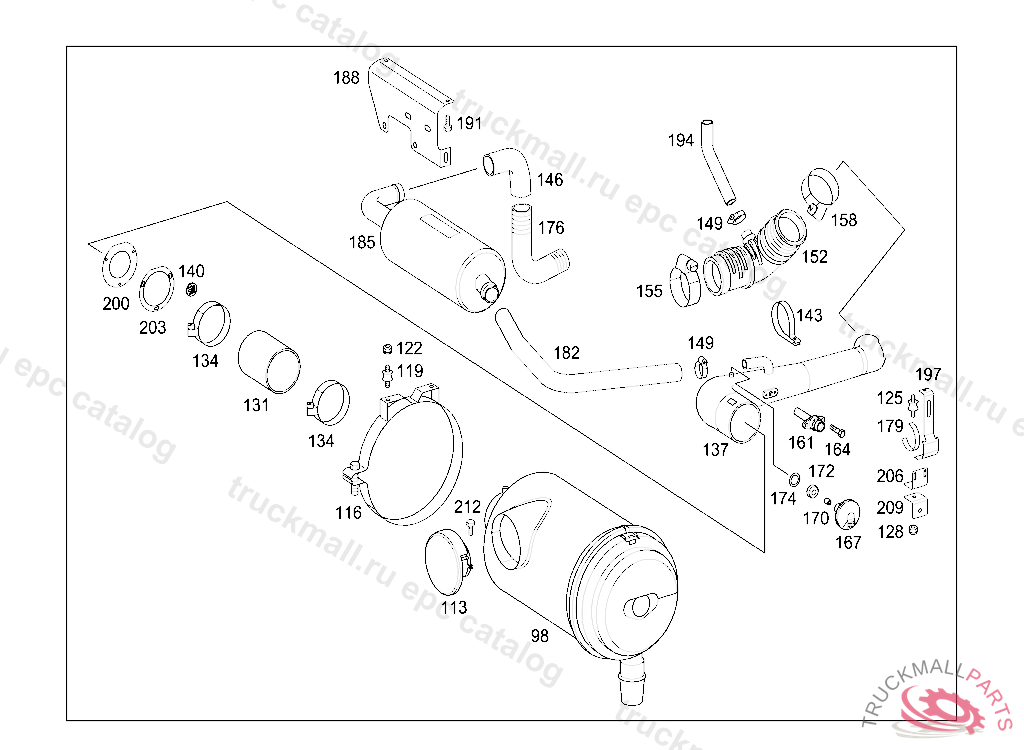

Поз.
Артикул
Описание
98
AIR CLEANER
113
SCOOP
113
SCOOP
116
CLAMP ON AIR CLEANER
119
RUBBER MOUNTINGM10X50X20
122
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
125
RUBBER MOUNTING
128
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
131
HOSE130X116MM
131
HOSED130/116LG
134
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
134
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
137
140
CLAMPING DISC30X23X3,5X0,4MM
143
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
143
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
146
MOLDED HOSE AT RESERVOIR,BOTTOM D28MM
149
CLAMP HOSE TO INTAKE MANIFOLD 25-40X13MM,V 207570
152
HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
155
CLAMP110-130X12
158
CLAMP , Replaced By: A0059972990
161
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR
161
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR, Replaced By: A0071531128
161
TEMPERATURE SENSOR. SENDER UNIT MOISTURE TEMPERATURE SENSOR, Replaced By: A0071530128
164
HEXAGON HEAD BOLT
164
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
167
SENDER UNIT. CONTACT SENSOR
170
WASHER FELT
172
THRUST RING14X10X2.6MM
174
O-RING
176
179
SHIM
182
HOSE600 LG
182
INTAKE HOSE
185
RESONATOR
188
191
SCREW , Replaced By: N910143008000
194
PIPE LINE22MM, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 06.02.2009
197
200
203
206
209
212
SCREW , Replaced By: N910143008002
