Mercedes N304017008034 - Болт крепления

G320 / G3.6 AMG 463.208 FROM IDENT-NO.106740

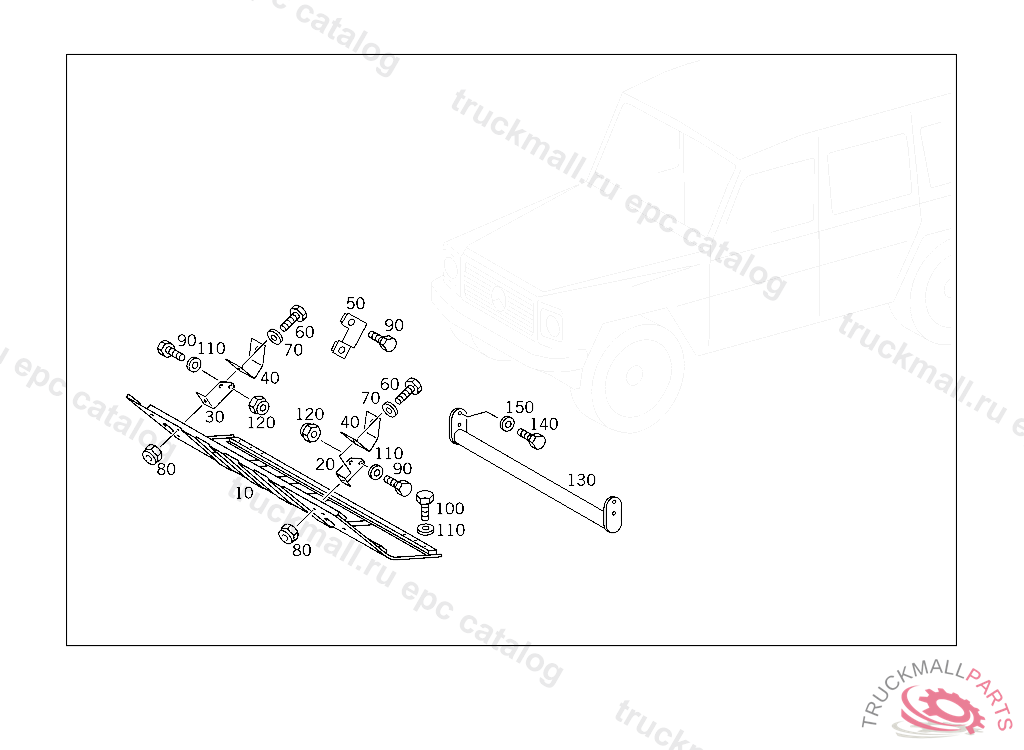

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
10
A4635200442
PROTECTIVE PLATE ENGINE
20
A4605240010
MOUNTING ANGLE LEFT
30
A4605240110
MOUNTING ANGLE RIGHT
40
A4635200441
BRACKET
50
A4635200341
BRACKET RIGHT
50
A4635200241
BRACKET LEFT
60
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
60
N000933008153
SCREW , Replaced By: N304017008034
70
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
80
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
80
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
N913004008004
NUT , Replaced By: N913004008001
90
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
100
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
110
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
120
N910113010000
NUT STRAP TO BRACKET
130
A4635200242
PROTECTIVE PLATE UNDERRUN PROTECTION
140
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
150
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
