Mercedes A0029872640 - ANSCHLAGPUFFER

INTOURO ME 633.252

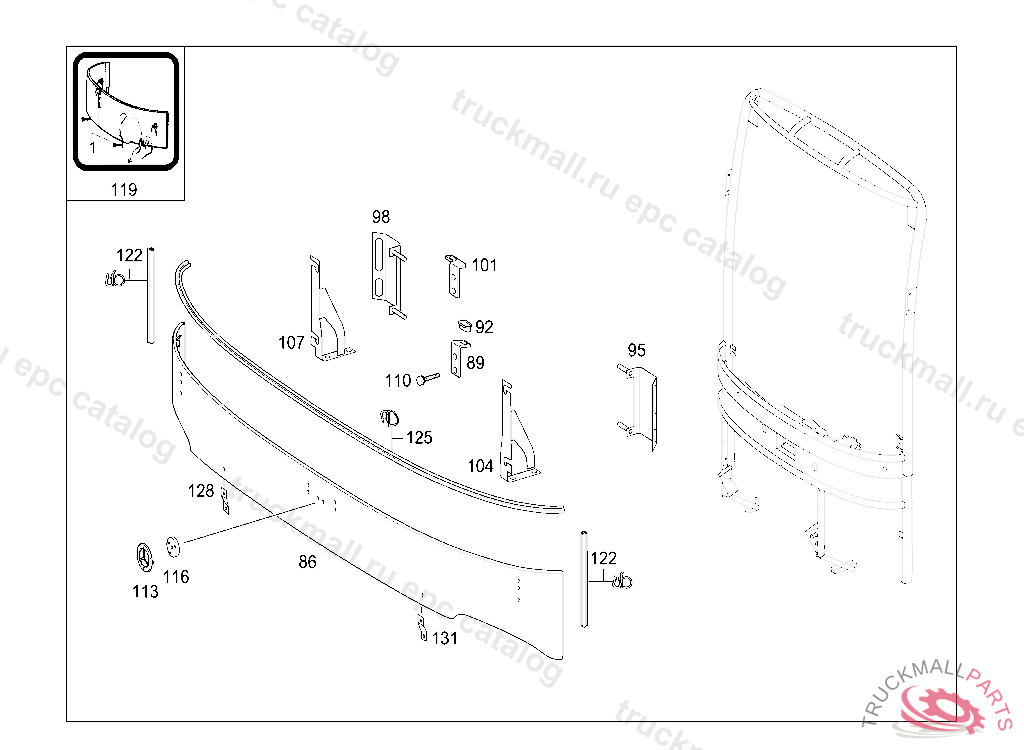

62 COWL,FRONT PANEL - 030 COWL IL. 4

Поз.
Артикул
Описание
86
A6336270008
89
A6296270014
BRACKET97X30MM
92
A0009927905
BUSHING8,3X20MM
95
A6296200112
ANGLE LEFT
98
A6296200212
ANGLE RIGHT
101
A6296270614
BRACKET
104
A6296250085
BRACKET LEFT
107
A6296250185
BRACKET RIGHT
110
A0029872640
RUBBER BUFFER
113
A6738100018
BADGE COWL TOP FLAP
116
A0049883378
CLIP TYPE DESIGNATION TO CAB
119
A6296280100
GUMMED LABEL
122
A0009871762
RUBBER SECTION BLACK PVC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
125
A0009872562
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
128
A6326253814
BRACKET
131
A6326251014
BRACKET
